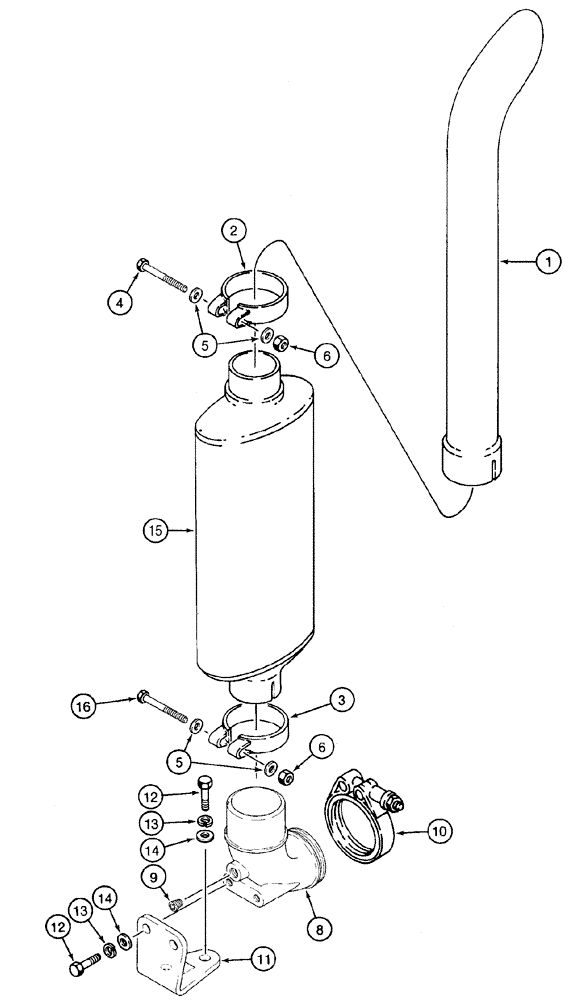

Запчасти Case 960 (02-05) - MUFFLER EXHAUST SYSTEM (02) - ENGINE

1

A172158

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST , Exhaust

1шт.

2

R48710

CLAMP,85.7mm

1шт.

3

R27691

CLAMP

1шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

6

129-770

NUT,3/8"-16, G5

2шт.

8

A173623

ELBOW

1шт.

9

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Square

1шт.

10

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

11

281897A1

BRACE

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

13

892-11010

LOCK WASHER,M10

4шт.

15

129272A1

MUFFLER

1шт.

16

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3/8 x 3-1/2

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
