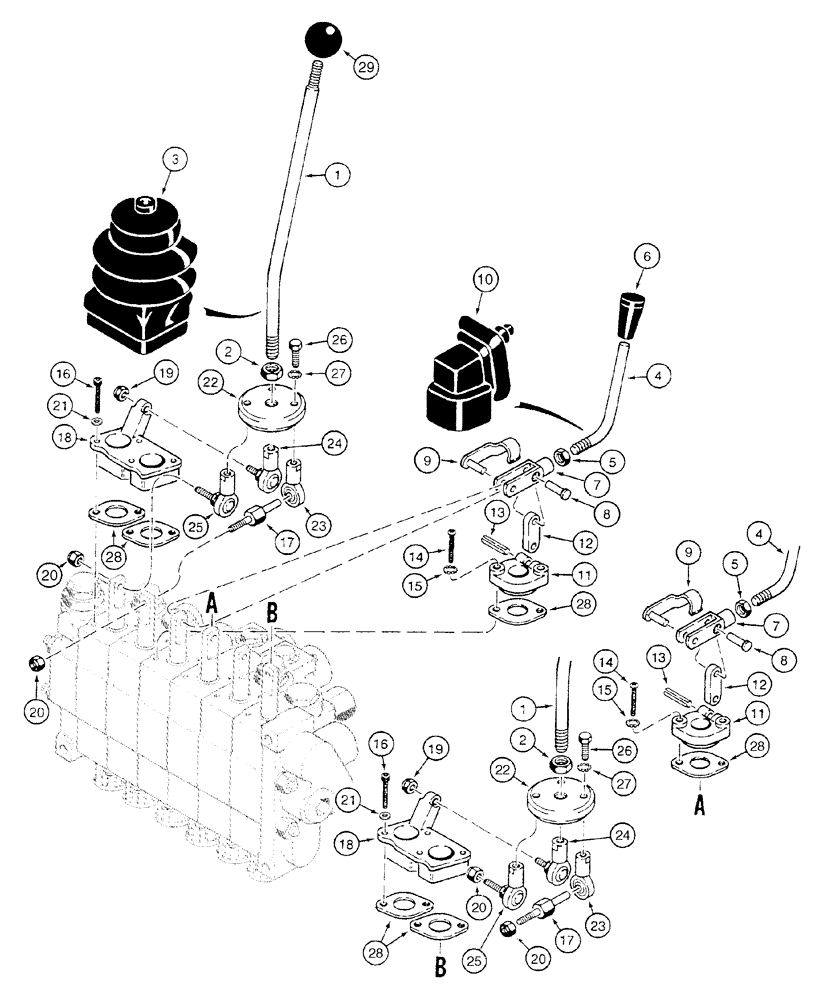

Запчасти Case 960 (08-28) - CONTROLS VALVE, BACKHOE (08) - HYDRAULICS

H672270

VALVE

Backhoe, 6 Spool, Also Includes 8-65 - 8-87

1шт.

H674023

HANDLE

Consists Of 1 - 3

2шт.

1

H438215

LEVER

1шт.

2

425-117

NUT,7/16"-20, G5

1шт.

3

H438216

BOOT

1шт.

H674696

HANDLE

Consists Of 4 - 10

2шт.

H674697

LEVER

Consists Of 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Lever, Stabilizer

1шт.

5

425-116

NUT,3/8" - 24, Gr 5

1шт.

6

H398867

GRIP

1шт.

7

H438219

CLEVIS

1шт.

8

427-4077

CLEVIS PIN,1/4" x .770"

1шт.

9

N14124

CIRCLIP

1шт.

10

N14125

BOOT

1шт.

H674596

BRACKET

Mounting, Stabilizer Lever, Consists Of 11 - 15

2шт.

11

H438217

BRACKET

Mounting

1шт.

12

H438218

LINK

1шт.

13

38-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

14

276-24720

SELF-TAP SCREW,Hex Hd, 1/4" x 1 1/4"

1/4 x 1-1/4

2шт.

15

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

H674022

BRACKET

Mounting, Consists Of 16 - 27

2шт.

16

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

4шт.

17

H437229

GUIDE

1шт.

18

H437230

BRACKET

1шт.

19

H438214

NUT

2шт.

20

H438213

NUT

1шт.

21

493-41026

LOCK WASHER,Ext Tooth, 1/4"

4шт.

H674595

ADAPTER

Consists Of 22 - 27

1шт.

22

H437228

DISC

1шт.

23

H437227

END

Rod

1шт.

24

H437225

END

Rod

1шт.

25

H437226

END

Rod

1шт.

26

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

27

893-11008

LOCK WASHER,Ext Tooth, M8

3шт.

28

N14042

SHIN

6шт.

29

CAS31375

KNOB

2шт.
