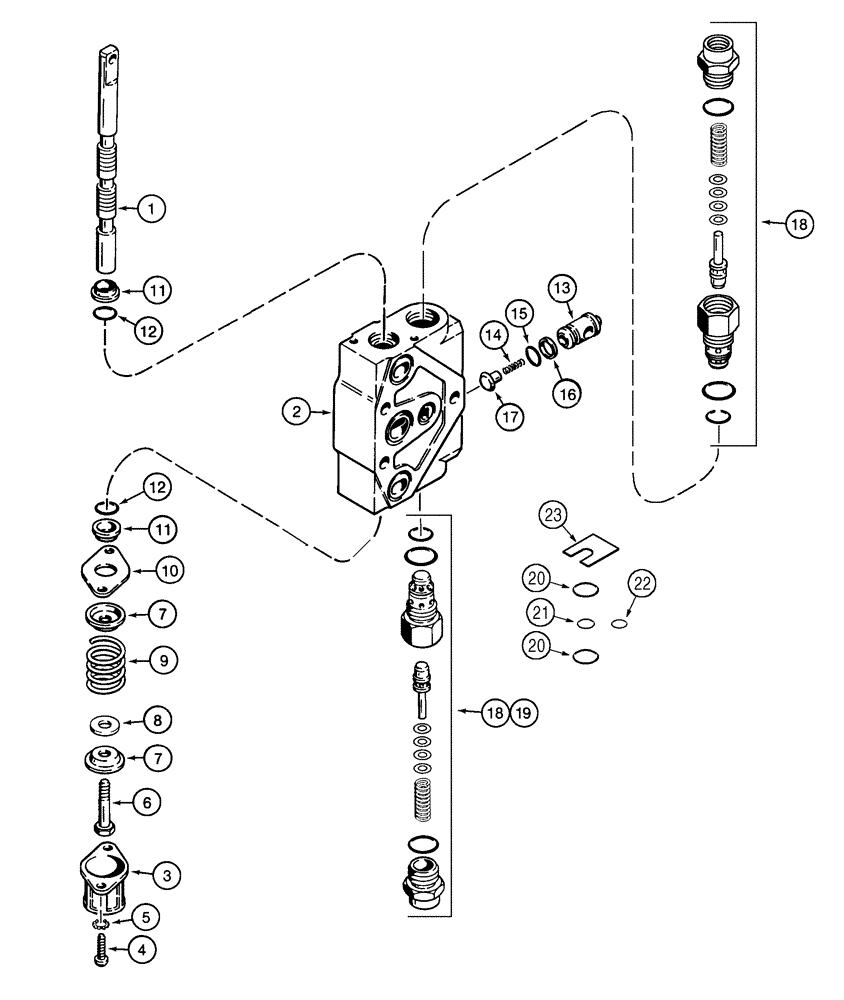

Запчасти Case 960 (08-24) - VALVE SECTION BACKHOE BOOM, DIPPER AND SWING (08) - HYDRAULICS

H672270

VALVE

Backhoe Control, 6 Spool, Also Includes 8-65 - 8-87

1шт.

H674693

KNIFE SECTION

SECTION, KNIFE , Dipper, Swing, Consists Of 1 - 18

2шт.

H674694

KNIFE SECTION

SECTION, KNIFE , Boom, Consists Of 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

Spool

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

H438212

CAP

1шт.

4

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

5

493-41026

LOCK WASHER,Ext Tooth, 1/4"

4шт.

6

H401190

SCREW

Special, Spool End

1шт.

7

H401208

SEAT PLATE

2шт.

8

1329639C1

SPACER

Bracket

1шт.

9

H401216

SPRING

1шт.

10

N14042

SHIN

2шт.

11

N14043

WIPER SEAL

2шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

13

H438205

VALVE

1шт.

14

H438206

SPRING

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

N14047

GASKET

1шт.

17

H438207

GUIDE

1шт.

18

H674018

VALVE

Boom, Dipper or Swing Section, See Page(s) 8-79

1-3шт.

19

N14058

VALVE

Boom Section, See Page(s) 8-83

1шт.

20

H438208

O-RING

2шт.

21

H438209

O-RING

1шт.

22

H438210

O-RING

1шт.

23

H438211

SHIM

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

2шт.
