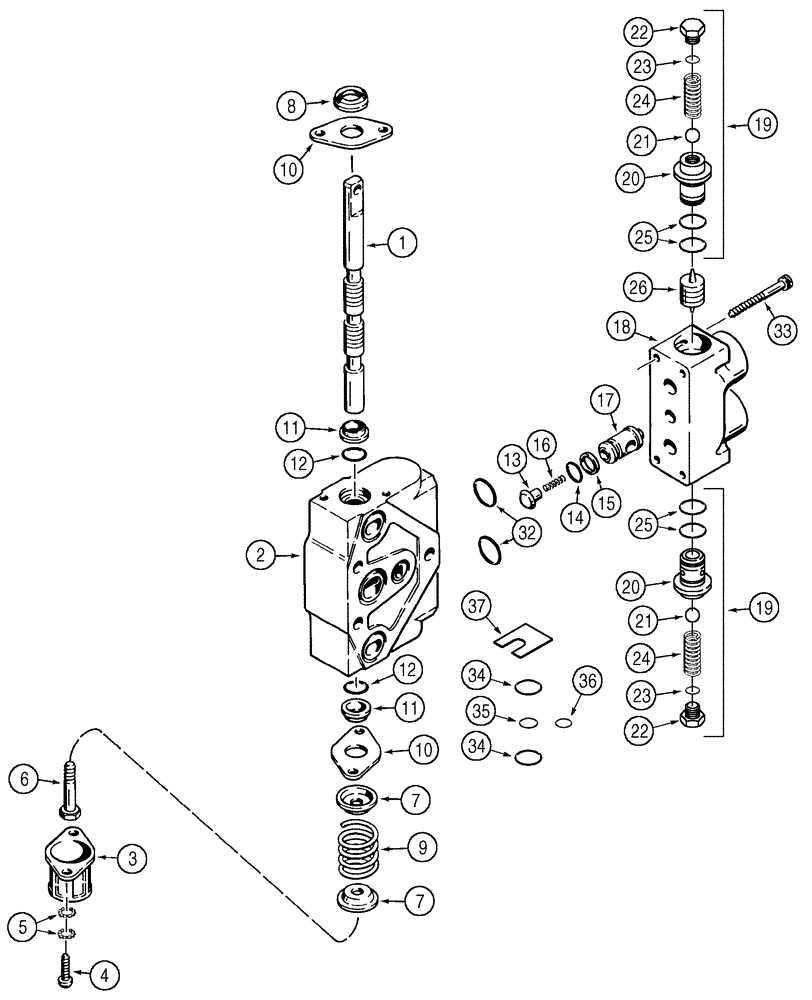

Запчасти Case 960 (08-23) - VALVE SECTION BACKHOE STABILIZER (08) - HYDRAULICS

H672270

VALVE

Backhoe Control, 6 Spool, Includes 8-65 - 8-87

1шт.

H674692

HYD VALVE SECTION

Stabilizer, Consists Of 1 - 32

2шт.

1

NSS

NOT SOLD SEPARAT

Spool

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

H438212

CAP

1шт.

4

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

5

493-41026

LOCK WASHER,Ext Tooth, 1/4"

4шт.

6

H401190

SCREW

1шт.

7

H401208

SEAT PLATE

2шт.

8

1329639C1

SPACER

1шт.

9

H401216

SPRING

Spool

1шт.

10

N14042

SHIN

2шт.

11

N14043

WIPER SEAL

2шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

13

H438205

VALVE

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

N14047

GASKET

1шт.

16

H438206

SPRING

1шт.

17

H438207

GUIDE

1шт.

N14048

VALVE

Includes 18 - 26, 28

1шт.

18

NSS

NOT SOLD SEPARAT

Body

1шт.

19

N14049

VALVE

Consists Of 20 - 25

2шт.

20

NSS

NOT SOLD SEPARAT

Cartridge

1шт.

21

NSS

NOT SOLD SEPARAT

Ball

1шт.

22

NSS

NOT SOLD SEPARAT

Plug

1шт.

23

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16

1шт.

24

NSS

NOT SOLD SEPARAT

Spring

1шт.

25

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

26

N14050

PILOT VALVE

1шт.

27

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

2шт.

28

61-32528

HEX SOC SCREW,1/4"-20 x 1 3/4"

4шт.

29

H438208

O-RING

2шт.

30

H438209

O-RING

1шт.

31

H438210

O-RING

1шт.

32

H438211

SHIM

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

2шт.
