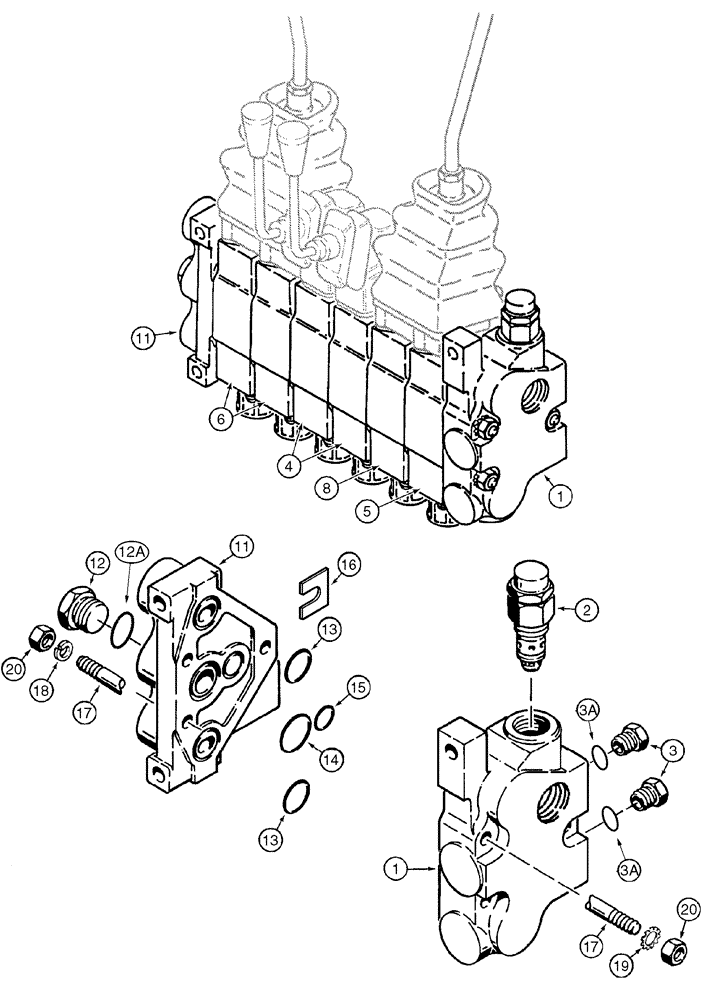

Запчасти Case 960 (08-21) - VALVE ASSY BACKHOE CONTROL (08) - HYDRAULICS

H672270

VALVE

Backhoe, 6 Spool, Consists Of 1- 20, Includes 8-65 - 8-87

1шт.

1

N14032

KNIFE SECTION

SECTION, KNIFE , Inlet, Includes 2 - 3A

1шт.

2

N14645

VALVE, PRESSURE RELI

EF , See Page(s) 8-81

1шт.

3

76349

PLUG,9/16" - 18 ORB

Incl. 3A

2шт.

4

H674692

HYD VALVE SECTION

Stabilizer, See Page(s) 8-71

2шт.

5

H674691

KNIFE SECTION

SECTION, KNIFE , Bucket, See Page(s) 8-69

1шт.

6

H674693

KNIFE SECTION

SECTION, KNIFE , Dipper, Swing, See Page(s) 8-75

2шт.

8

H674694

KNIFE SECTION

SECTION, KNIFE , Boom, See Page(s) 8-75

1шт.

N14036

KNIFE SECTION

SECTION, KNIFE , Outlet, Consists Of 11 - 16

1шт.

11

NSS

NOT SOLD SEPARAT

Section, Outlet

1шт.

12

86625138

PLUG,7/18" - 14

Includes 12A

1шт.

12a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

H438208

O-RING

Medium

2шт.

14

H438209

O-RING

Large

1шт.

15

H438210

O-RING

Small

1шт.

16

H438211

SHIM

1шт.

N14041

SET

Tie Rod, Consists Of 17 - 20

3шт.

17

NSS

NOT SOLD SEPARAT

Rod, Tie

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

93-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

20

425-116

NUT,3/8" - 24, Gr 5

2шт.

3a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
