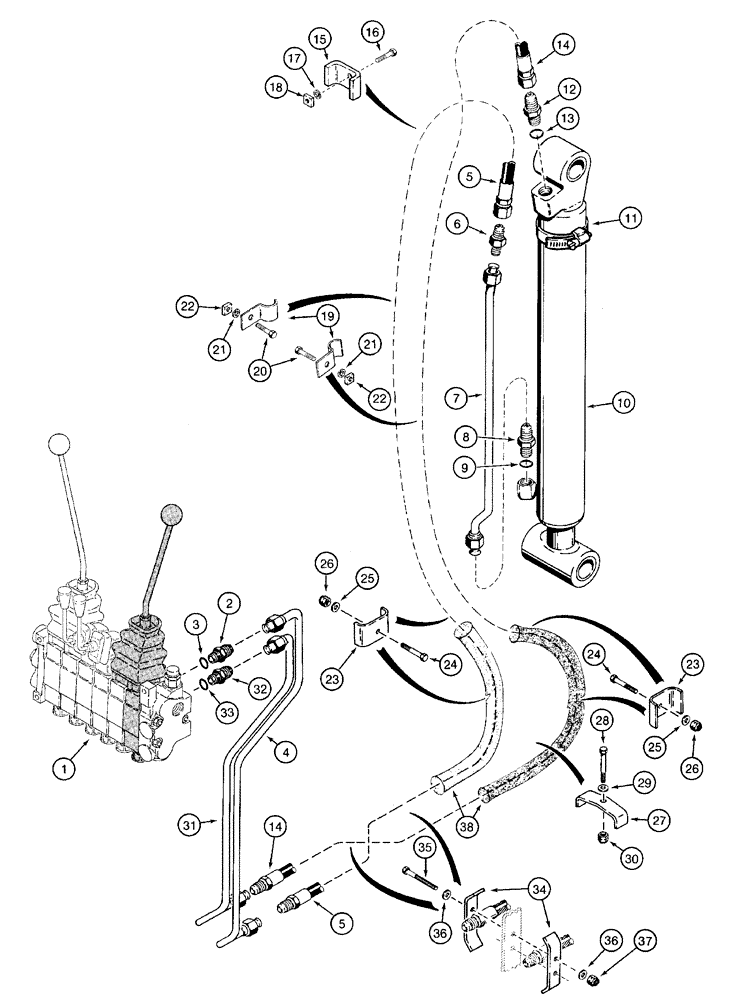

Запчасти Case 960 (08-20) - HYDRAULICS CYLINDER, BACKHOE BUCKET (08) - HYDRAULICS

1

H672270

VALVE

Backhoe Control, 6 Spool, See Page(s) 8-65 - 8-87

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

H672390

TUBE ASSY.,15.88 mm OD

1шт.

5

H433857

HOSE ASSY.

2830 mm (111-3/8 in)

1шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

7

H672353

TUBE ASSY.,15.88 mm OD

Bucket Cylinder, Rod End

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

H672570

CYLINDER

75 ID x 654 strk, Backhoe Bucket, See Page(s) 8-103

1шт.

11

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

H433857

HOSE ASSY.

2830 mm (111-3/8 in)

1шт.

15

H231894

CLAMP

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

19

H436769

CLAMP

2шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

21

496-11038

13/32 x 13/16 x 3/32

2шт.

22

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

23

H231894

CLAMP

4шт.

24

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

26

230-4216

LOCK NUT,3/8"-16, GA

4шт.

27

H433518

CLAMP

1шт.

28

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

30

230-4216

LOCK NUT,3/8"-16, GA

1шт.

31

H672389

TUBE ASSY.,15.88 mm OD

1шт.

32

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

H233304

CLAMP

4шт.

35

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

5/16 x 3-1/4

4шт.

36

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

8шт.

37

230-4215

NUT,5/16"-18, GA

4шт.

38

D131814

SLEEVE

3шт.
