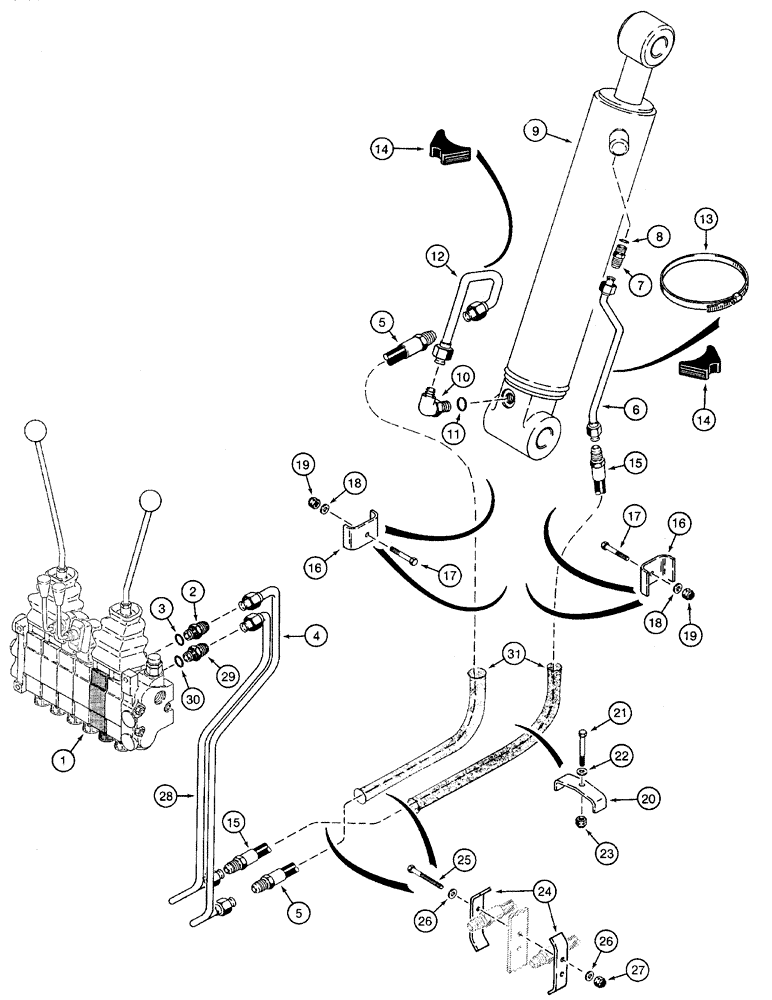

Запчасти Case 960 (08-19) - HYDRAULICS CYLINDER, BACKHOE DIPPER (08) - HYDRAULICS

1

H672270

VALVE

Backhoe, 6 Spool, See Page(s) 8-65 - 8-87

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

H672388

TUBE ASSY.,15.88 mm OD

1шт.

5

H433856

HOSE ASSY.

1800 (70-7/8 in)

1шт.

6

H672351

TUBE ASSY.,15.88 mm OD

Dipper Cylinder, Rod End

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

138234A1

CYLINDER

102 ID x 441 strk, Backhoe Dipper, See Page(s) 8-101

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

H672350

TUBE ASSY.,15.88 mm OD

1шт.

13

214-1488

HOSE CLAMP,130.05mm - 152.4mm

1шт.

14

D38648

BLOCK

Rubber

2шт.

15

H433856

HOSE ASSY.

1800 (70-7/8 in)

1шт.

16

H231894

CLAMP

4шт.

17

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

19

230-4216

LOCK NUT,3/8"-16, GA

4шт.

20

H433518

CLAMP

1шт.

21

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

23

230-4216

LOCK NUT,3/8"-16, GA

1шт.

24

H233304

CLAMP

4шт.

25

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

5/16 x 3-1/4

4шт.

26

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

8шт.

27

230-4215

NUT,5/16"-18, GA

4шт.

28

H672387

TUBE ASSY.,15.88 mm OD

1шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

31

D131814

SLEEVE

2шт.
