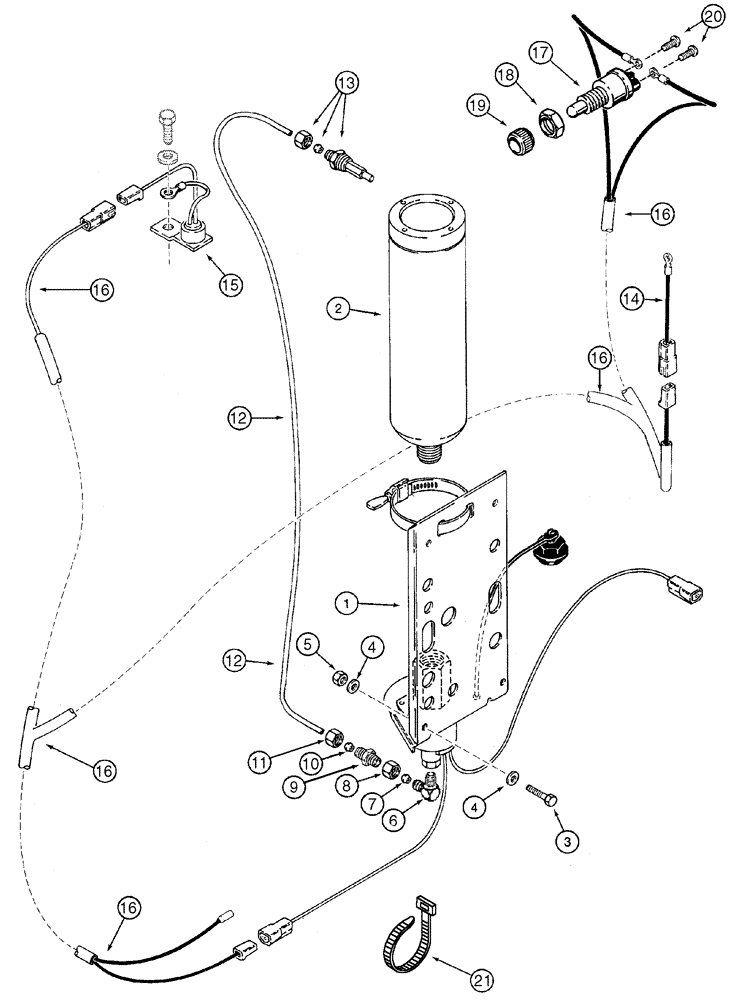

Запчасти Case 960 (02-04) - COLD START (02) - ENGINE

1

A172116

VALVE

12V, 3 cc, Component Parts Not Serviced Separately

1шт.

2

A171940

CYLINDER

Starting Fluid

1шт.

3

413-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

7/16 x 3/4

3шт.

4

496-21047

WASHER

15/32 x 59/64 x 7/64

6шт.

5

230-4217

LOCK NUT,7/16"-14, GA

7/16

3шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

1/8 tube OD x 1/8 PT, Compression, Includes 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Body

1шт.

10

222-650

SLEEVE,1/8" Tube, Comp

1шт.

11

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

12

H434360

TUBE,3.18 mm OD x 1730 mm L

1шт.

13

A172900

NOZZLE CAP

Component Parts Not Serviced Separately

1шт.

14

109391A1

ADAPTER

Adapter

1шт.

15

A171943

IGNITION SWITCH

Temperature

1шт.

16

109493A1

HARNESS

1шт.

L72776

SWITCH

Push Button, Includes 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

Switch

1шт.

18

H275784

JAM NUT

1шт.

19

D73741

NUT

1шт.

20

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

No. 10 x 1/4

2шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.
