Запчасти Case 960 (08-17) - HYDRAULICS CYLINDER, BACKHOE SWING (08) - HYDRAULICS

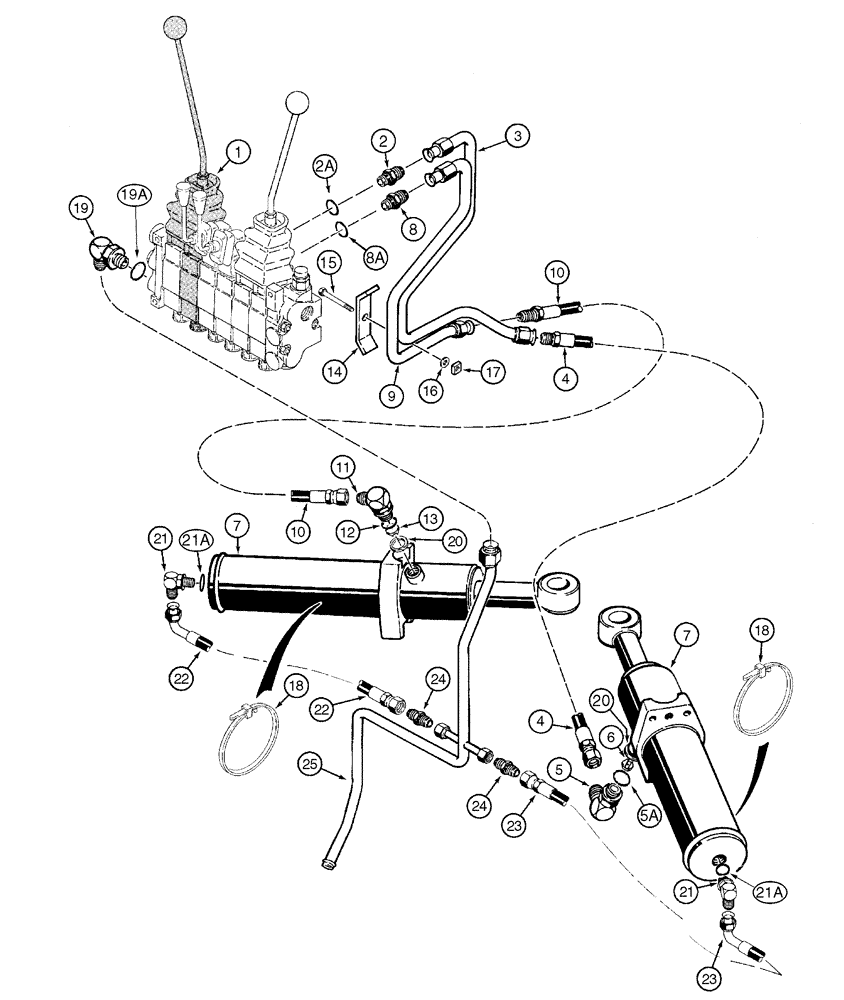

Схема запчастей Case 960 - (08-17) - HYDRAULICS CYLINDER, BACKHOE SWING (08) - HYDRAULICS
22
13
12
19
24
22
17
4
20
8a
15
21
18
20
19a
10
14
21a
23
5
21a
18
16
1
11
10
5a
3
24
23
25
21
2
9
6
7
4
8
7
2a

Артикул

Название

Примечание

Количество

1

H672270

VALVE

Backhoe, 6 Spool, See Page(s) 8-65 - 8-87

1шт.

2

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes 2A

1шт.

2a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

H672392

TUBE ASSY.,9.53 mm OD

1шт.

4

H168625

HYDRAULIC HOSE,6.35 mm ID x 381.00 mm, SAE 100R1

Tube To Right Hand Swing Cylinder

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 5A

1шт.

5a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

H759110

ORIFICE PACKAGE

0,0935 mm

1шт.

7

H672571

CYLINDER ASSY.

83 ID x 341 strk, Backhoe Swing, See Page(s) 8-93

2шт.

8

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes 8A

1шт.

8a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

H672391

TUBE ASSY.,9.53 mm OD

1шт.

10

H165340

HYDRAULIC HOSE,6.35 mm ID x 304.80 mm, SAE 100R1

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 12

1шт.

13

H759110

ORIFICE PACKAGE

0,0935 mm, Swing Cylinder

1шт.

14

H45468

CLAMP

Tubes

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

17

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

2шт.

19

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 19A

1шт.

19a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

495-31022

WASHER,#10

Used as Orifice Seat

2шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 21A

2шт.

22

108145A1

TUBE,508, 55 mm Length

508 mm (20 in)

1шт.

23

108144A1

TUBE,0.375" ID, 876, 55 mm Length

876 mm (34-1/2 in)

1шт.

24

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16 fl

2шт.

25

108087A1

TUBE

Valve Return

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 30
