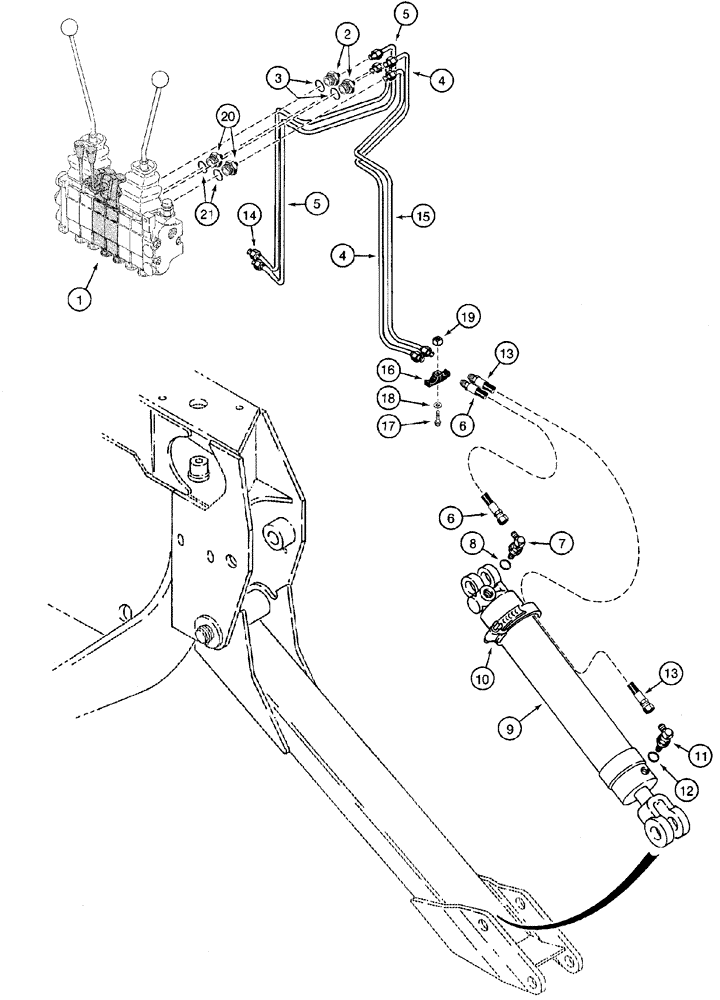

Запчасти Case 960 (08-16) - HYDRAULICS CYLINDER, BACKHOE STABILIZER (08) - HYDRAULICS

1

H672270

VALVE

Backhoe, See Page(s) 8-65 - 8-87

1шт.

2

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

H672407

TUBE ASSY.,9.53 mm OD

Control Valve To Right Hand Stabilizer Cylinder Hose

1шт.

5

H672405

TUBE ASSY.,9.53 mm OD

Control Valve To Left Hand Stabilizer Cylinder Hose

1шт.

6

H165282

HYDRAULIC HOSE,6.35 mm ID x 533.40 mm, SAE 100R1

Tube To Stabilizer Cylinder, Closed End

2шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

101646A1

CYLINDER

95 ID x 406 strk, Backhoe Stabilizer, See Page(s) 8-89

2шт.

10

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

11

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

H434207

HOSE ASSY.

915 mm (36 in)

2шт.

14

H672406

TUBE ASSY.,9.53 mm OD

Left Hand Stabilizer Cylinder Rod End Hose To Control Valve

1шт.

15

H672408

TUBE ASSY.,9.53 mm OD

Right Hand Stabilizer Cylinder Rod End Hose To Control Valve

1шт.

16

D120679

CLAMP,Tube, 1/2"

Hose

2шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

19

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

20

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
