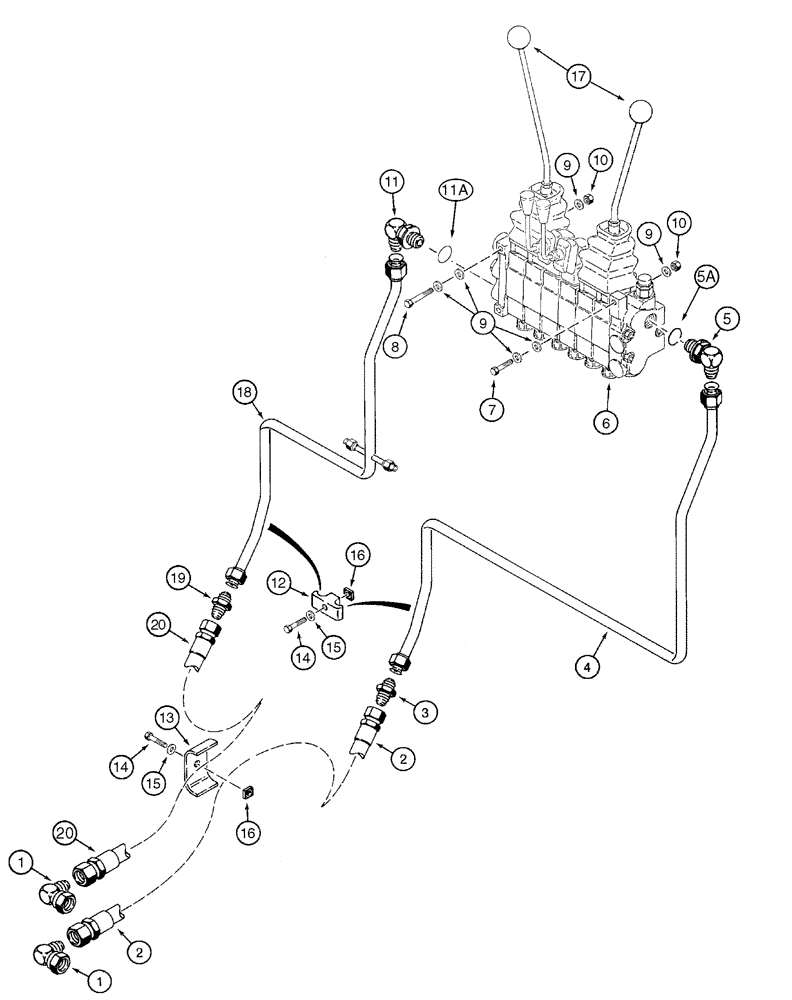

Запчасти Case 960 (08-15) - HYDRAULICS BACKHOE SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

2

H433854

HOSE ASSY.

775 mm (30-1/2 in), Valve Supply

1шт.

3

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1-1/16 fl

1шт.

4

H672533

TUBE ASSY.,19.05 mm OD

Valve Supply

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 5A

1шт.

5a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

H672270

VALVE

Backhoe, See Page(s) 8-65 - 8-87

1шт.

7

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

8

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

10

232-4116

NUT,3/8"-16, GC

3шт.

11

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 11A

1шт.

11a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

D124301

CLAMP,3/4" ID

Tubes

1шт.

13

H231878

CLAMP

Hoses

1шт.

14

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

16

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

17

CAS31375

KNOB

Backhoe Control Valve

2шт.

18

108087A1

TUBE

Valve Return

1шт.

19

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1-1/16 fl

1шт.

20

120837A1

HOSE

825 mm (32-1/2 in), Valve Return

1шт.
