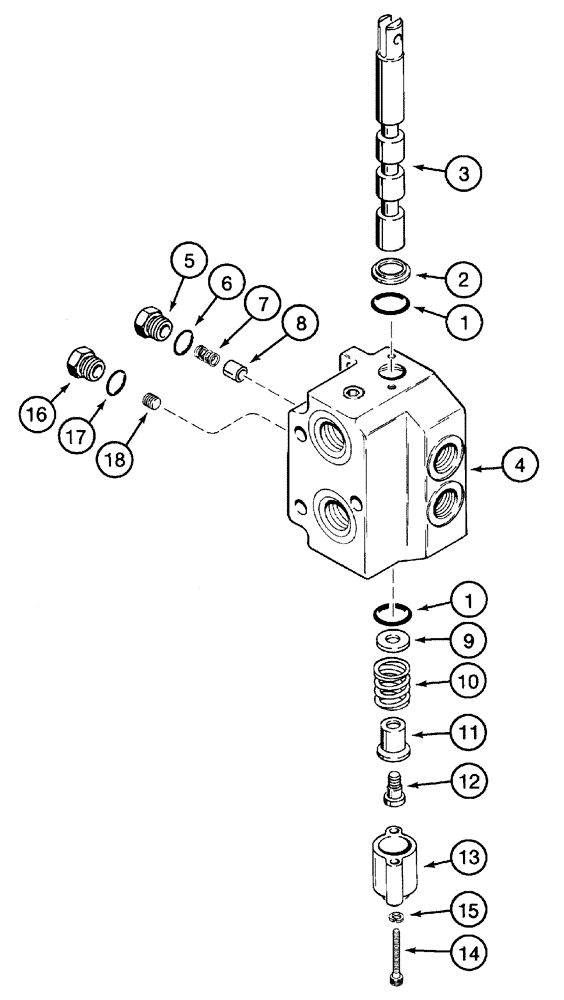

Запчасти Case 960 (08-14) - VALVE SECTION OUTLET AND BLADE ANGLE (08) - HYDRAULICS

H674793

VALVE

Consists Of 8-31 - 8-41

1шт.

105519A1

KNIFE SECTION

SECTION, KNIFE , Outlet and Blade Angle, Consists Of 1 - 18

1шт.

1

H438030

O-RING

5/8 x 13/16

2шт.

2

H438926

WIPER SEAL

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

H438024

SET

Load Check, Consists Of 5 - 8

1шт.

5

H438231

PLUG

Includes 6

1шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

105520A1

KIT

Centering Spring, Consists Of 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

Washer

1шт.

10

105521A1

SPRING

Centering

1шт.

11

NSS

NOT SOLD SEPARAT

Spacer

1шт.

12

NSS

NOT SOLD SEPARAT

Bolt

1шт.

13

NSS

NOT SOLD SEPARAT

Cap

1шт.

14

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

15

492-11010

LOCK WASHER,#10

2шт.

16

H438231

PLUG

Includes 17

1шт.

18

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
