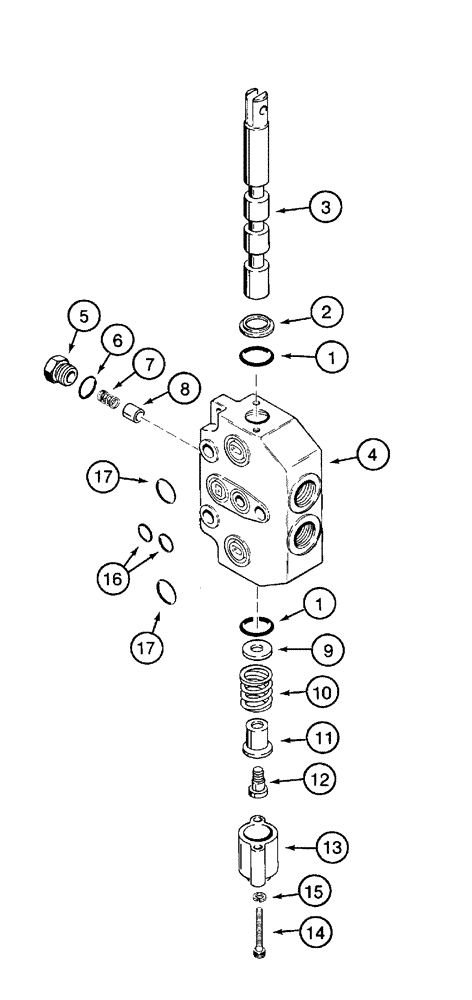

Запчасти Case 960 (08-13) - VALVE SECTION STEERING, REAR AND ATTACHMENT LIFT (08) - HYDRAULICS

H674793

VALVE

Consists Of 8-31 - 8-41

1шт.

100414A1

KNIFE SECTION

SECTION, KNIFE , Rear Steering And Attachment Lift, Consists Of 1 - 15

2шт.

1

H438030

O-RING

5/8 x 13/16

2шт.

2

H438926

WIPER SEAL

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

H438024

SET

Load Check, Consists Of 5 - 8

1шт.

5

H438231

PLUG

Includes 6

1шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

100416A1

KIT

Spring Center, Consists Of 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

Washer

1шт.

10

N9539

TENSION SPRING

Centering

1шт.

11

NSS

NOT SOLD SEPARAT

Spacer

1шт.

12

NSS

NOT SOLD SEPARAT

Bolt, Shoulder

1шт.

13

NSS

NOT SOLD SEPARAT

Cap

1шт.

14

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

15

492-11010

LOCK WASHER,#10

2шт.

16

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

4шт.

17

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

4шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
