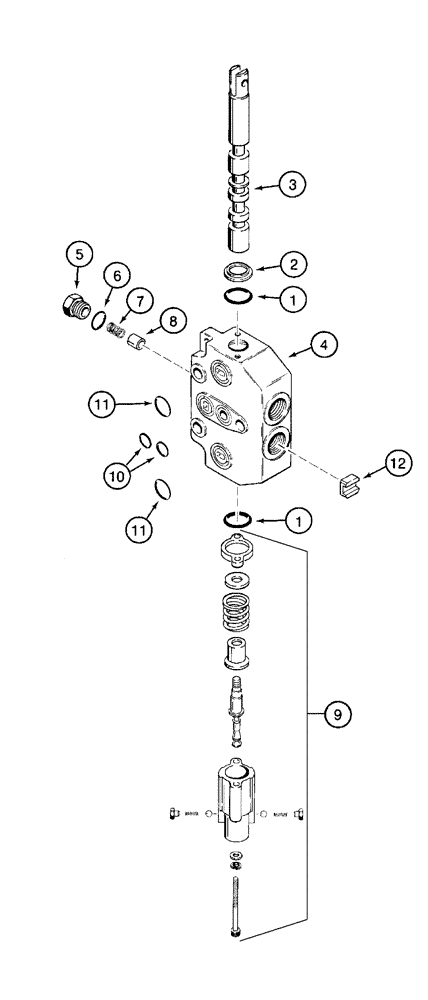

Запчасти Case 960 (08-12) - VALVE SECTION BLADE LIFT (08) - HYDRAULICS

H674793

VALVE

Consists Of 8-31 - 8-41

1шт.

100415A1

KNIFE SECTION

SECTION, KNIFE , Blade Lift, Consists Of 1 - 9

1шт.

1

H438030

O-RING

5/8 x 13/16

2шт.

2

H438926

WIPER SEAL

Rod

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

H438024

SET

Load Check, Consists Of 5 - 8

1шт.

5

H438231

PLUG

Includes 6

1шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

9

100417A1

KIT

Detent

1шт.

10

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

11

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

12

H438941

ORIFICE

2,388 mm (0,094 in)

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
