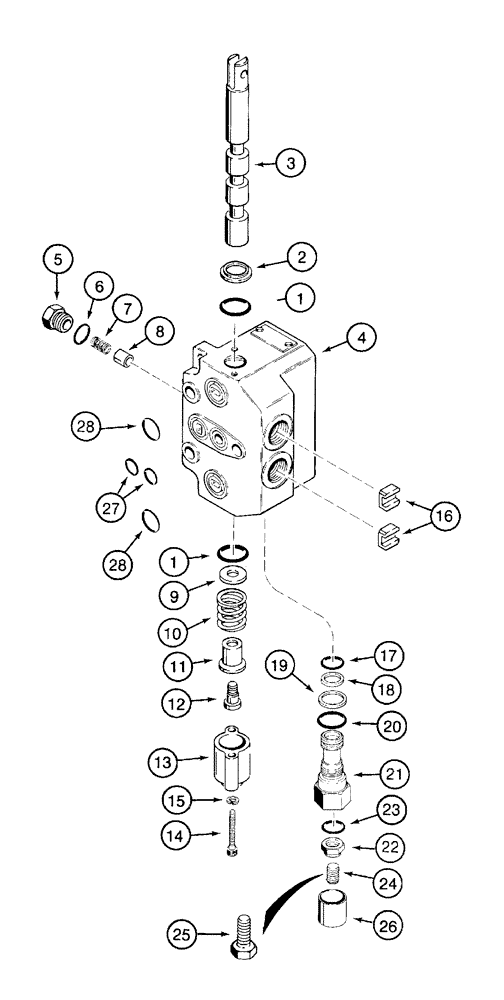

Запчасти Case 960 (08-11) - VALVE SECTION INLET AND BLADE TILT (08) - HYDRAULICS

H674793

VALVE

Consists Of 8-31 - 8-41

1шт.

105518A1

KNIFE SECTION

SECTION, KNIFE , Inlet and Blade Tilt, Consists Of 1 - 15

1шт.

1

H438030

O-RING

5/8 x 13/16

2шт.

2

H438926

WIPER SEAL

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

H438024

SET

Load Check, Consists Of 5 - 8

1шт.

5

H438231

PLUG

Includes 6

1шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

100416A1

KIT

Spring Center, Consists Of 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

Washer

1шт.

10

N9539

TENSION SPRING

Centering

1шт.

11

NSS

NOT SOLD SEPARAT

Spacer

1шт.

12

NSS

NOT SOLD SEPARAT

Bolt

1шт.

13

NSS

NOT SOLD SEPARAT

Cap

1шт.

14

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

15

492-11010

LOCK WASHER,#10

2шт.

16

H438941

ORIFICE

2,388 mm (0,094 in)

2шт.

100410A1

VALVE

Consists Of 17 - 26

1шт.

17

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

18

H438044

GASKET

1шт.

19

H438329

GASKET

1шт.

20

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

22

NSS

NOT SOLD SEPARAT

Nut

1шт.

23

NSS

NOT SOLD SEPARAT

5/16 x 1/16, O-Ring

1шт.

24

NSS

NOT SOLD SEPARAT

Screw, Set

1шт.

25

H438229

ADJUSTMENT SCREW

Adjustment, Replaces REF 24

1шт.

26

NSS

NOT SOLD SEPARAT

Cover

1шт.

27

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

28

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

H674535

GASKET KIT

Seal, Consists Of 17 - 20, 22, 23, 25

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
