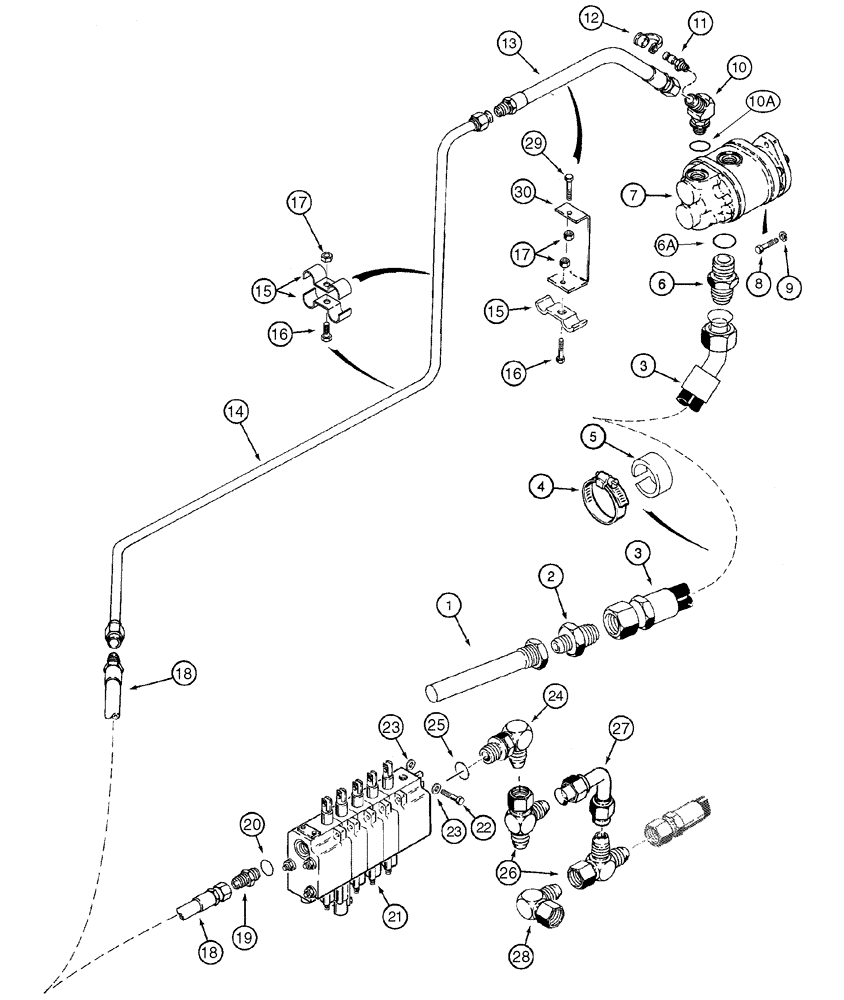

Запчасти Case 960 (08-09) - HYDRAULICS PUMP TO CONTROL VALVE (08) - HYDRAULICS

1

H434204

BAFFLE

Suction

1шт.

2

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

1-5/8 fl x 1-1/4 PT

1шт.

3

H433853

HOSE

1300 mm (51 in)

1шт.

4

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

5

H201301

GUARD

Hose

1шт.

6

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

1-5/8 fl x Or, Includes 6A

1шт.

6a

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

7

371386A1

PUMP, HYDRAULIC

Dual, See Page(s) 5-27

1шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

H434165

ELBOW

Special, Includes 10A

1шт.

10a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

H434164

COUPLING

1шт.

12

H434163

DUST CAP

1шт.

13

H244913

HYDRAULIC HOSE,12.70 mm ID x 431.80 mm, SAE 100R2

1шт.

14

381620A2

TUBE

1шт.

15

A12032

CLAMP

5шт.

16

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

17

230-4215

NUT,5/16"-18, GA

4шт.

18

H267054

HYDRAULIC HOSE,12.70 mm ID x 939.80 mm, SAE 100R2

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

H674793

VALVE

See Page(s) 8-31 - 8-41

1шт.

22

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

24

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1-1/16 fl x 7/8 Or, Includes 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adj

2шт.

27

381863A2

TUBE

1шт.

28

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

30

399339A1

BRACKET

1шт.
