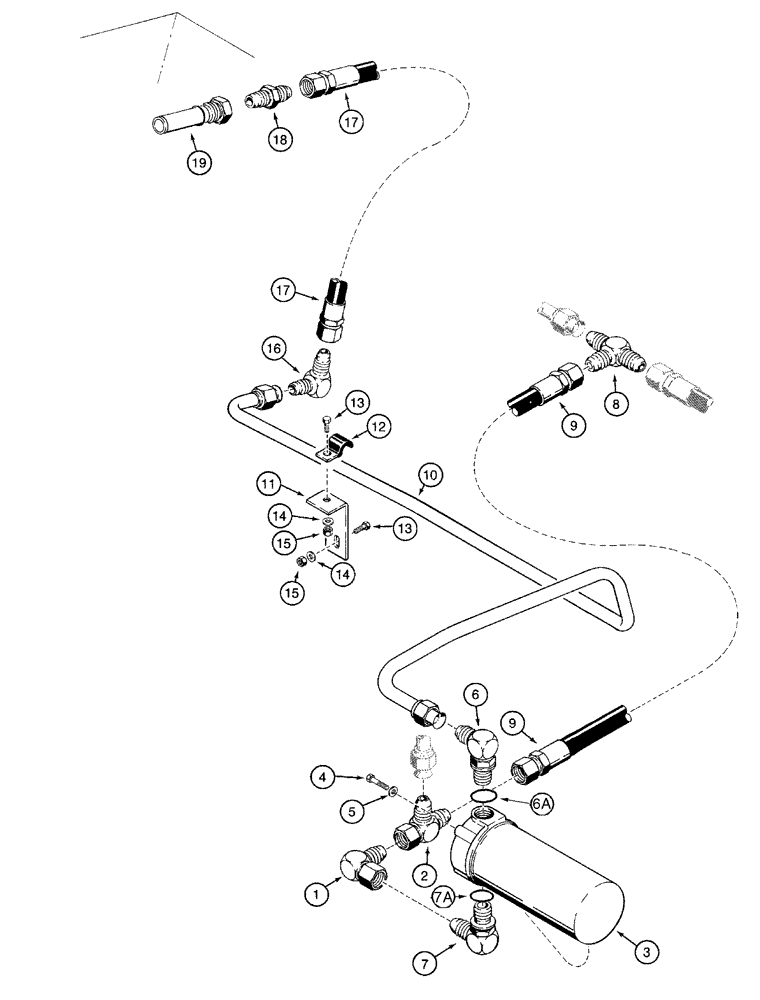

Запчасти Case 960 (08-07) - HYDRAULICS FILTERS, RETURN AND LINES (08) - HYDRAULICS

1

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

2

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

3

H674791

FILTER

Hydraulic Oil, Return, See Page(s) 8-201

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

6

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 6A

1шт.

6a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

H439211

FITTING

Special, Includes 7A

1шт.

7a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

218-1578

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

1шт.

9

H439321

HOSE

Front Steering Control Valve Tee To Tee At Return Filter

1шт.

10

H674929

TUBE,25.4 mm OD

1шт.

11

H439207

BRACKET

1шт.

12

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

15

230-4216

LOCK NUT,3/8"-16, GA

2шт.

16

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

1шт.

17

H439116

HOSE

520 mm (20-1/2 in), Serial Range: Tube-Reservoir

1шт.

18

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

1шт.

19

H151399

FILTER STRAINER

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.
