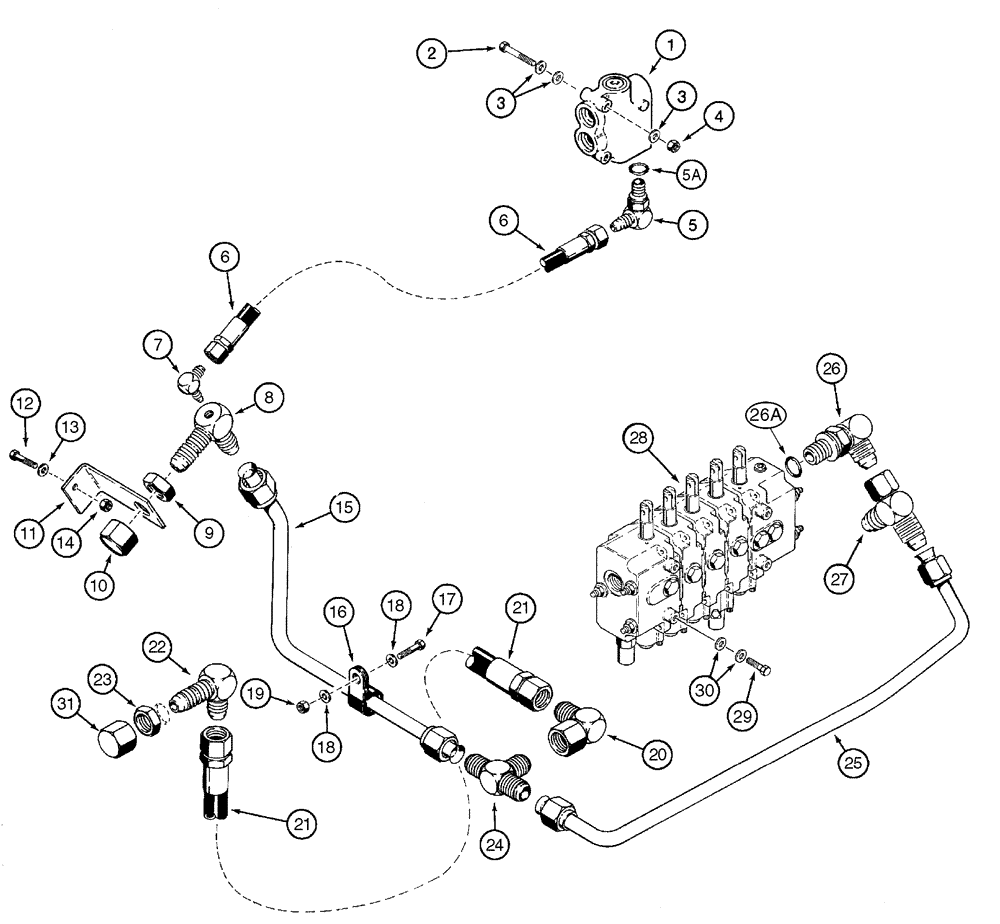

Запчасти Case 960 (08-06) - HYDRAULICS VALVE, PRIORITY (08) - HYDRAULICS

1

H672904

VALVE

Flow Divider, See Page(s) 5-29

1шт.

2

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

2шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Hardened

6шт.

4

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

5

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 5A

1шт.

6

L77350

HOSE

635 mm (25 in)

1шт.

7

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

9/16 fl x 1/4 PT

1шт.

8

H439210

FITTING

Special

1шт.

9

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

10

218-335

CAP,37 Degree, 1 1/16"-12

2шт.

11

H434618

ANGLE

Tube Support

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

14

230-4216

LOCK NUT,3/8"-16, GA

1шт.

15

H674901

TUBE,19.1 mm OD

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

19

230-4216

LOCK NUT,3/8"-16, GA

1шт.

20

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

21

H439321

HOSE

450 mm (17-3/4 in)

1шт.

22

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

23

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

24

218-596

TEE,1 1/16"-12 37 Degree

1шт.

25

380443A2

TUBE

1шт.

26

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1-1/16 fl x 7/8 Or, Includes 26A

1шт.

26a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adj

1шт.

28

H674793

VALVE

5 Spool, See Page(s) 8-31 - 8-41

1шт.

29

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

31

218-335

CAP,37 Degree, 1 1/16"-12

1шт.

5a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
