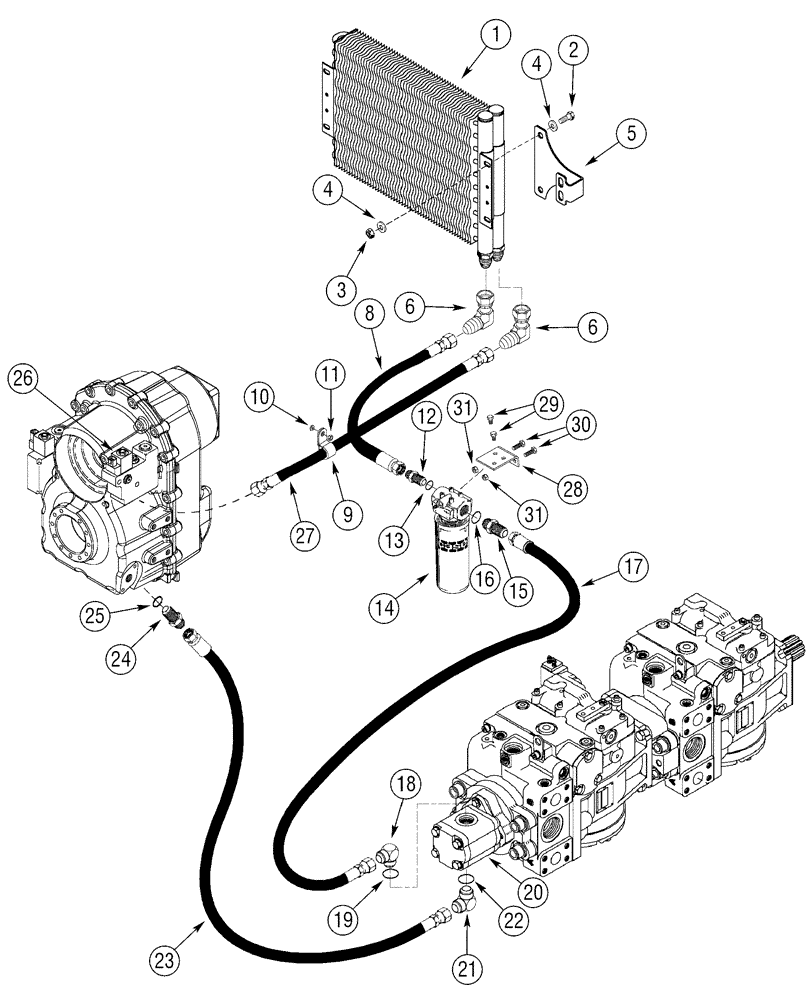

Запчасти Case 960 (08-05) - HYDRAULICS OIL COOLER AND LINES (08) - HYDRAULICS

1

H409144

COOLER, OIL

Transmission

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

3

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

5

410774A3

BRACKET

2шт.

6

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

3/4 fl x 3/8 PT

2шт.

8

411982A1

HOSE ASSY.

1шт.

9

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1-3/4

1шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

11

230-4216

LOCK NUT,3/8"-16, GA

1шт.

12

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

Includes 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

D121629

FILTER, ENGINE OIL

FILTER, OIL , See Page(s) 6-89

1шт.

15

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 16

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

17

376996A1

HOSE ASSY.

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

434313A1

SET

Charge, See Page(s) 6-19

1шт.

21

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 21

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

23

399341A1

HOSE ASSY.

1шт.

24

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

383591A2

VALVE, CONTROL

Brake, See Page(s) 6-39

1шт.

27

411984A1

HOSE ASSY.

1шт.

28

111774A1

SUPPORT

1шт.

29

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

30

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

31

832-41310

NUT,M10 x 1.5, Cl 10

2шт.
