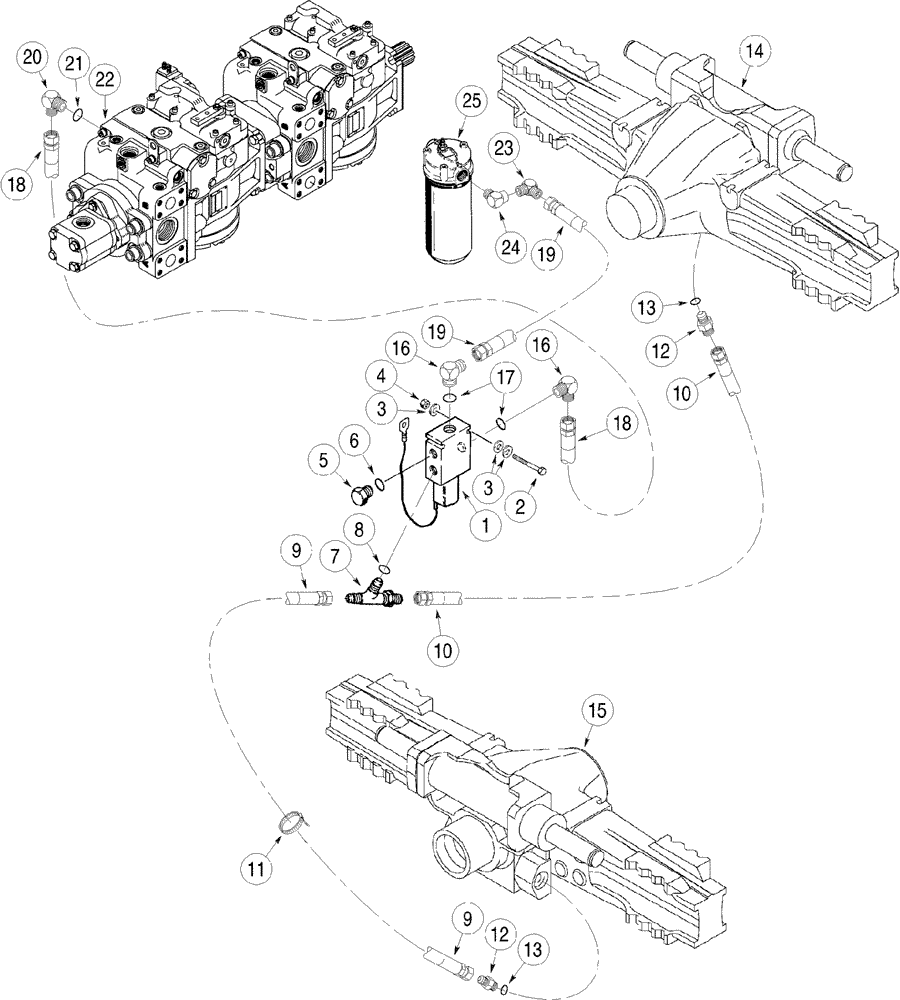

Запчасти Case 960 (08-04) - HYDRAULICS SOLENOID VALVE (08) - HYDRAULICS

1

187505C91

VALVE

See Page(s) 6-85

1шт.

2

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

2шт.

3

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

7шт.

4

832-41306

NUT,M6 x 1, Cl 10

2шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. 6

1шт.

7

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 8

1шт.

9

H171041

HOSE

SPARE PART , 1457 mm

1шт.

10

139517C1

HYDRAULIC HOSE

2032 mm (80 in)

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 13

2шт.

14

393983A1

AXLE, FRONT

Rear, See Page(s) 6-67 - 6-79

1шт.

15

393982A1

AXLE, FRONT

Front, See Page(s) 6-51 - 6-63

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 17

2шт.

18

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

1шт.

19

H439126

HOSE

1шт.

20

218-5552

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 21

1шт.

22

414348A1

FILTER

See Page(s) 6-19

1шт.

23

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

9/16 fl x 1/4 PT

1шт.

24

H439211

FITTING

1шт.

25

H674791

FILTER

See Page(s) 8-201

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
