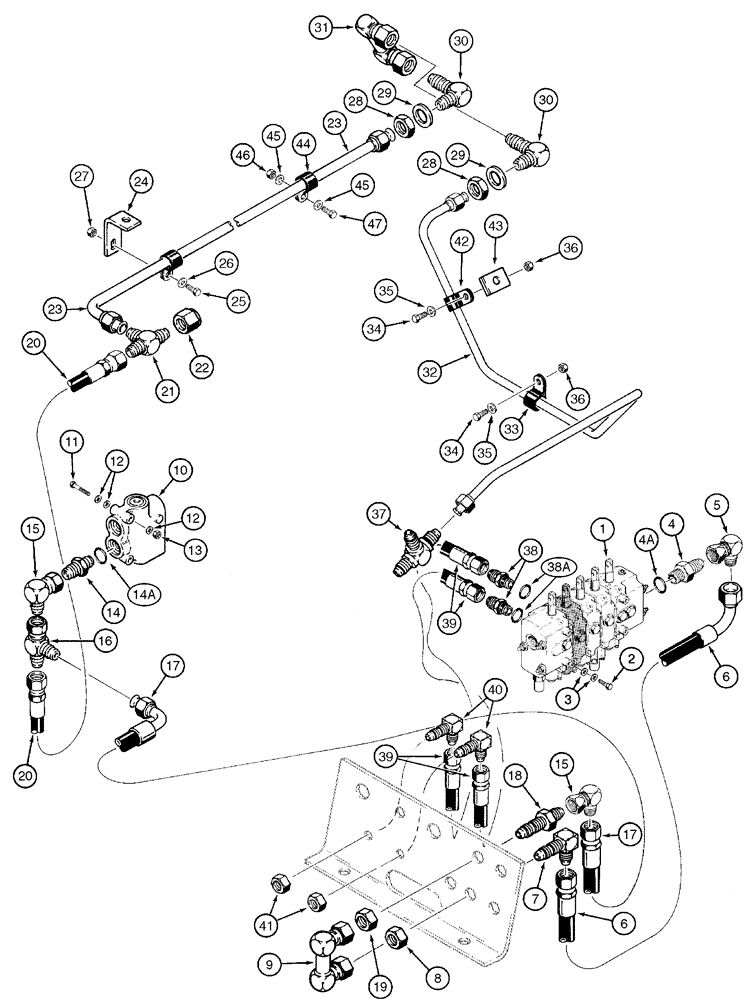

Запчасти Case 960 (08-03) - HYDRAULICS POWER BEYOND (08) - HYDRAULICS

1

H674793

VALVE

5 Spool, See Page(s) 8-31 - 8-41

1шт.

2

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Hardened

6шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 4A

1шт.

4a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

6

H439322

HOSE

1100 mm (43-5/16 in), Control Valve to Rear Bulkhead Plate

1шт.

7

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

8

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

9

H673212

FITTING

Special

1шт.

10

H672904

VALVE

Flow Divider, See Page(s) 5-29

1шт.

11

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

2шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Hardened

6шт.

13

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

14

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes 14A

1шт.

14a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

16

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adj

1шт.

17

H434986

HOSE ASSY.

1150 mm (45-1/4 in), Plate

1шт.

18

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1-1/16 fl x bkhd fl

1шт.

19

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

20

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

Priority Valve to Backhoe Supply Tube

1шт.

21

218-596

TEE,1 1/16"-12 37 Degree

1шт.

22

218-335

CAP,37 Degree, 1 1/16"-12

1шт.

23

H672492

TUBE,19.05 mm OD x 1700, 90 mm L

1шт.

24

H434096

BRACKET

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

26

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

27

230-4216

LOCK NUT,3/8"-16, GA

1шт.

28

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

29

495-81187

WASHER,1 1/16" x 1 5/8" x .065"

1-1/16 x 1-3/4 x 1/16

2шт.

30

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

31

H673212

FITTING

Special

1шт.

32

H674900

TUBE,19.1 mm OD

1шт.

33

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

35

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

36

230-4216

LOCK NUT,3/8"-16, GA

2шт.

37

218-1578

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

1шт.

38

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Includes 38A

2шт.

38a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

39

H434077

HOSE

900 mm (35-7/16 in)

2шт.

40

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

41

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

42

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

1шт.

43

H439207

BRACKET

1шт.

44

515-2319

1шт.

45

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

46

232-4118

NUT,1/2"-13, GC

1шт.

47

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.
