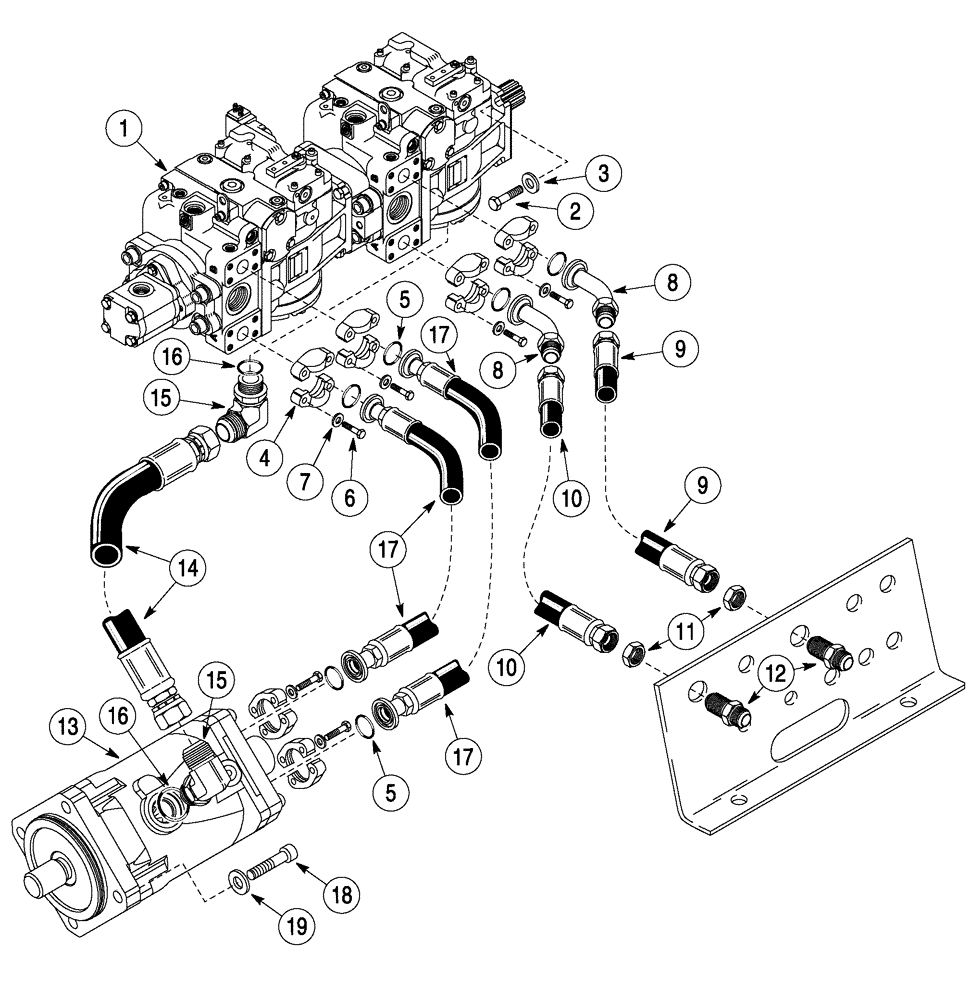

Запчасти Case 960 (08-02) - HYDRAULICS PUMP, TANDEM (08) - HYDRAULICS

1

383978A2

PUMP

Tandem, See Page(s) 6-9 - 6-33

1шт.

2

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

114285A1

KIT

Split Flange, Includes 4 - 7

6шт.

4

S97224

CLAMP

1 in

2шт.

5

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

6

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

7

492-11044

LOCK WASHER,7/16"

4шт.

8

H439279

ADAPTER

Special

2шт.

9

382556A1

HOSE ASSY.

1804 mm (71 in), High Loop

1шт.

10

382557A1

HOSE ASSY.

1808 mm (71-3/16 in), Low Loop

1шт.

11

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

12

218-678

FITTING,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

1-5/16 fl x bkhd fl

2шт.

13

385343A2

MOTOR

Ground Drive, See Page(s) 6-81, 6-83

1шт.

14

380090A1

HOSE ASSY.

585 mm (23 in), Case Drain, Serial Range: Motor-Pump

1шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 16

2шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

380081A1

HOSE ASSY.

864 mm (34 in), Ground Drive Loop

2шт.

18

864-14040

HEX SOC SCREW,M14 x 40mm, Cl 8.8

4шт.

19

496-81004

WASHER,41/64" x 1.047" x .134", HDN

41/64 x 1-15/32 x 5/32

4шт.
