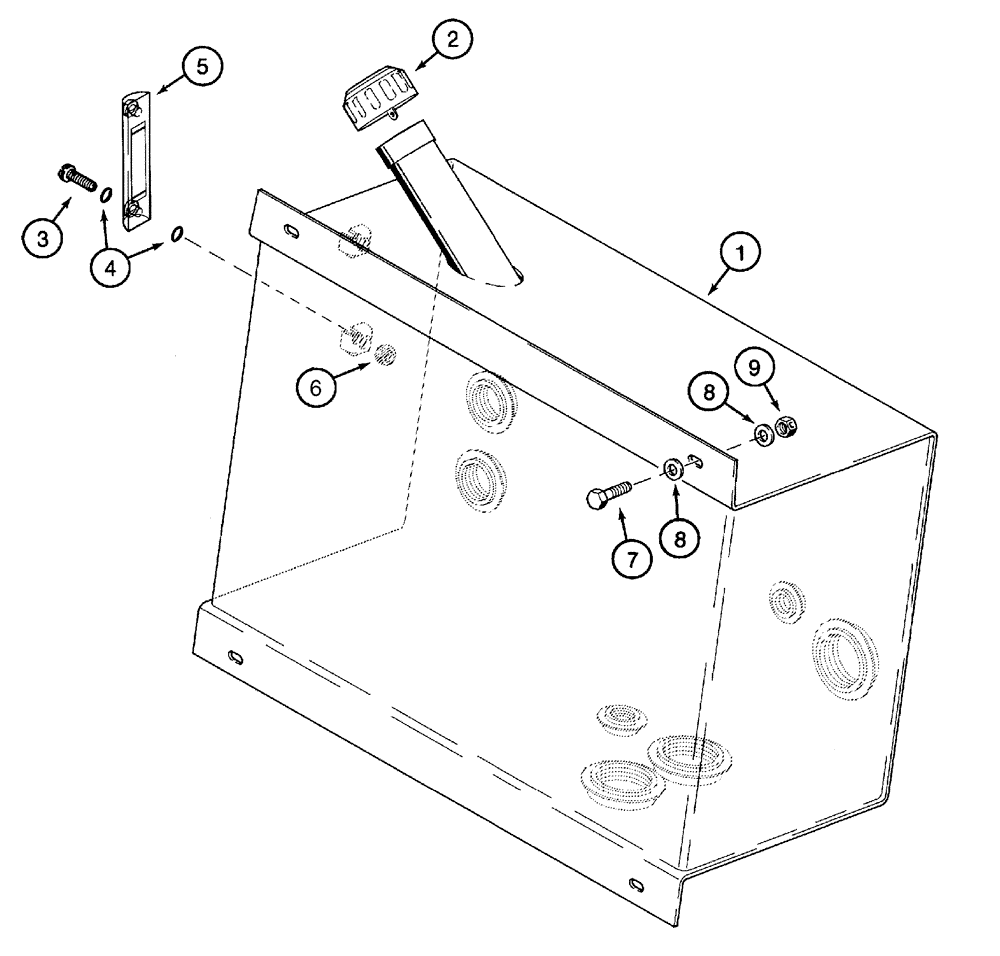

Запчасти Case 960 (08-01) - TANK RESERVOIR, OIL (08) - HYDRAULICS

1

389533A2

RESERVOIR ASSY.

Hydraulic Oil, Includes 2, L116247

1шт.

2

257448A1

CAP

1шт.

L116247

GAUGE

Sight, Consists Of 3 - 6

1шт.

3

N13213

BOLT

2шт.

4

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

4шт.

5

NSS

NOT SOLD SEPARAT

Gauge, Sight, Order L116247

1шт.

6

829-1412

NUT,M12, Cl 10.9

Not Used In This Application

2шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

9

832-41310

NUT,M10 x 1.5, Cl 10

4шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Hardened

8шт.
