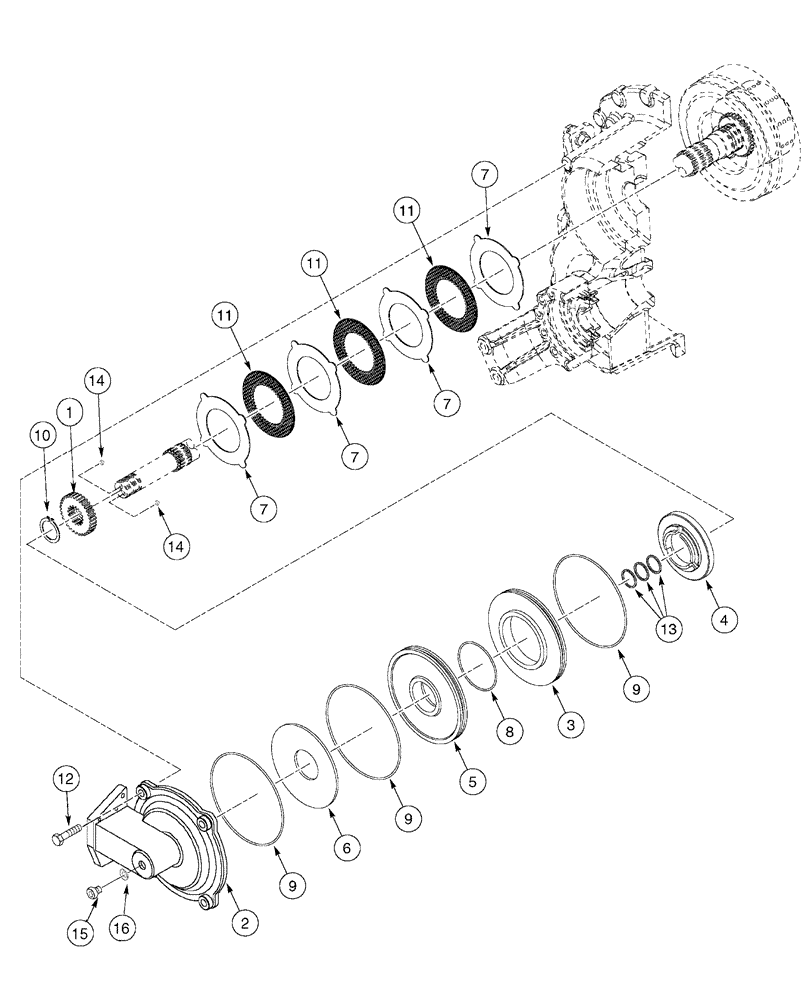

Запчасти Case 960 (07-01) - TRANSMISSION BRAKE, PARKING (07) - BRAKES

358034A2

TRANSMISSION

Includes 6-37 - 6-49, 7-3

1шт.

1

363472A1

SLEEVE

1шт.

2

363479A1

HOUSING

1шт.

3

363482A1

PLATE

Piston Stop

1шт.

4

363483A1

PISTON

Pusher

1шт.

5

363484A1

PISTON

1шт.

6

363485A1

BELLEVILLE WASHER,61mm ID x 170mm OD x 4.6mm Thk

1шт.

7

363486A1

PLATE

4шт.

8

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 1/8

1шт.

9

238-5263

O-RING,0.139" Thk x 7.234" ID, -263, Cl 5, 75 Duro

3шт.

10

247557A1

RING, SNAP

RING SNAP

1шт.

11

345334A1

FACING

3шт.

12

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

13

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING

3шт.

14

D142898

PLUG,M10 x 1

10 x 1 mm

2шт.

15

181100A1

PLUG,1/8 CAS x 8

1шт.

16

934667R1

SEALING RING,M10 x 14 x 1

1шт.
