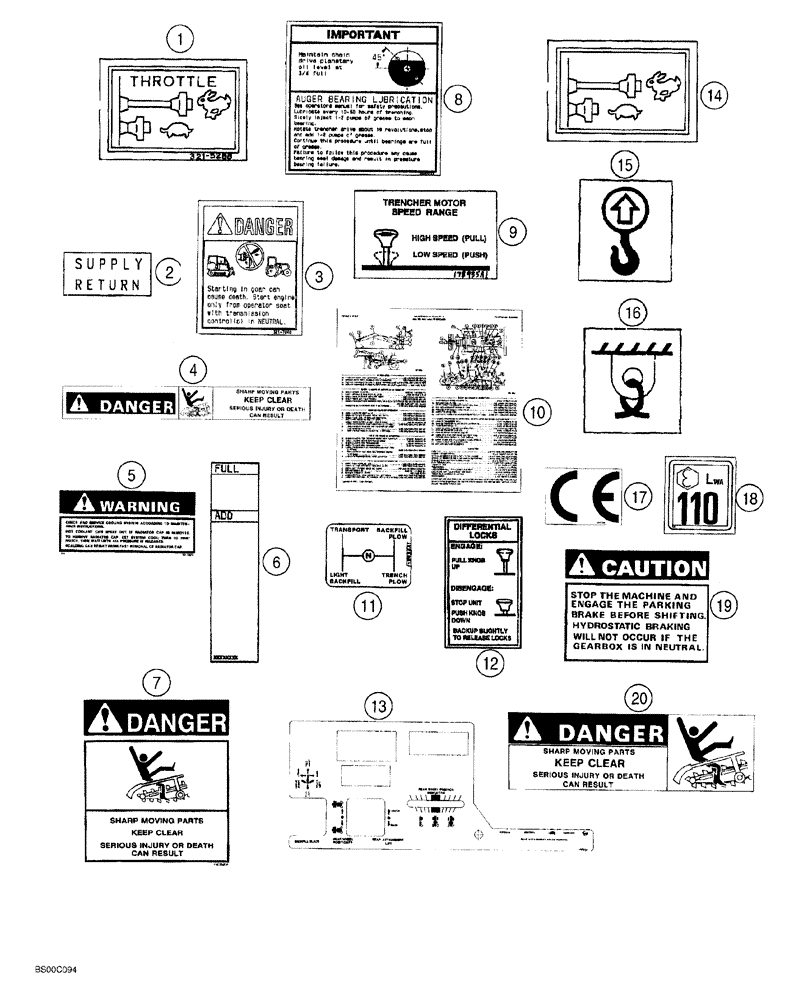

Запчасти Case 860 (09-33A) - DECALS - ENGLISH (860 TURBO TRENCHER) (09) - CHASSIS/ATTACHMENTS

1

321-5288

DECAL

throttle

1шт.

2

H438522

DECAL

supply, return

1шт.

3

321-7040

DANGER DECAL

Starting in gear can cause death

1шт.

4

H438909

DECAL

danger, sharp moving parts, keep clear, 60 x 470 mm long

2шт.

5

321-6672

DECAL

warning, check and service cooling system

1шт.

6

109715A1

DECAL

hydraulic oil reservoir level

1шт.

7

H438908

DECAL

danger, sharp moving parts, keep clear, 110 x 110 mm long

3шт.

8

H437833

DECAL

important, maintain chain drive planetary oil level

1шт.

9

178935A1

DECAL

trencher motor speed range

1шт.

10

8-80922

DECAL

maintenance schedule

1шт.

11

178938A1

DECAL

shift pattern

1шт.

12

178942A1

DECAL

differential lock

1шт.

13

178947A1

DECAL

side console, attachments, rear wheel positioner and rear wheel position indicator

1шт.

14

199413A1

DECAL

throttle, fast/slow

1шт.

15

139729A1

DECAL

lift only

4шт.

16

139728A1

DECAL

tie down

4шт.

17

176262A1

DECAL

CE symbol, 60 mm

1шт.

18

221870A1

DECAL

bystander, 110 LWA, noise level

1шт.

19

321-5501

DECAL

caution, stop the machine

1шт.

20

H438999

DECAL

danger, sharp moving parts, keep clear

2шт.
