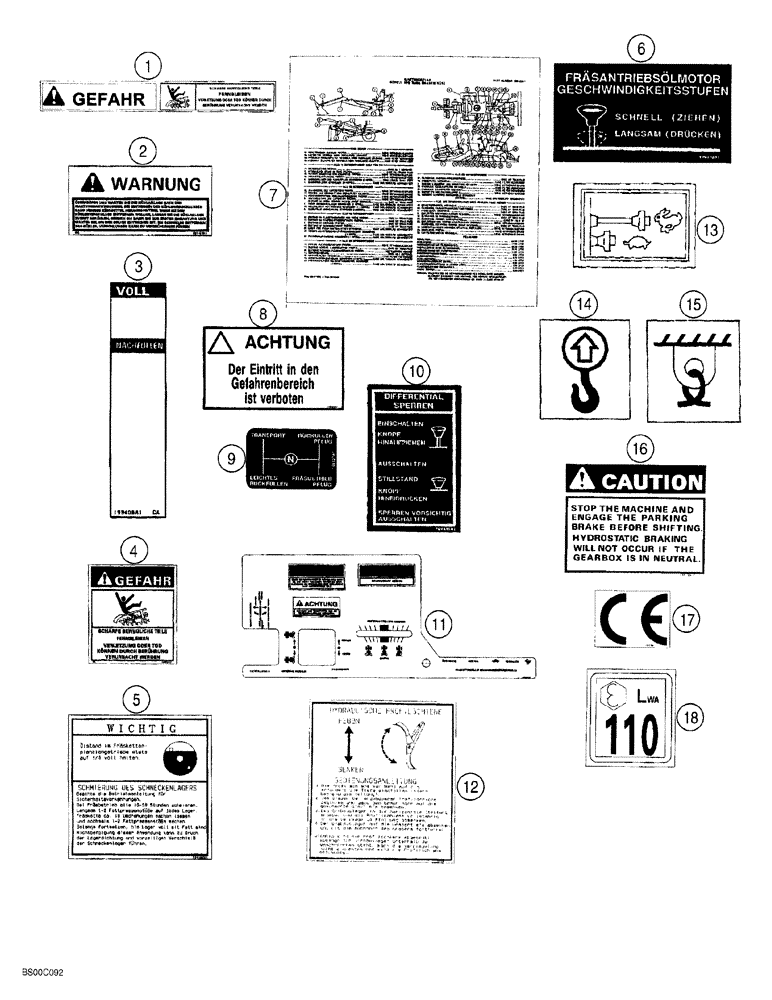

Запчасти Case 860 (09-31A) - DECALS - GERMAN (860 TURBO TRENCHER) (09) - CHASSIS/ATTACHMENTS

1

220679A1

DECAL

danger, sharp moving parts, keep clear

2шт.

2

321-6795

DECAL

warning, check and service cooling system (German)

1шт.

3

199408A1

DECAL

hydraulic oil reservoir level

1шт.

4

196969A1

DECAL

danger, sharp moving parts, keep clear

3шт.

5

224102A1

DECAL

important, maintain chain drive planetary oil level

1шт.

6

199429A1

DECAL

trencher motor speed range

1шт.

7

199426A1

DECAL

maintenance schedule

1шт.

8

175684A1

DECAL

attention, keep clear, sharp moving parts

1шт.

9

199427A1

DECAL

shift pattern

1шт.

10

199430A1

DECAL

differential lock

1шт.

11

199428A1

DECAL

side console, attachments, rear wheel positioner and rear wheel position indicator

1шт.

12

232743A1

DECAL

hydraulic crumber, operating instructions

1шт.

13

199413A1

DECAL

throttle, fast/slow

1шт.

14

139729A1

DECAL

lift only

4шт.

15

139728A1

DECAL

tie down

4шт.

16

321-5501

DECAL

caution, stop the machine

1шт.

17

176262A1

DECAL

CE symbol, 60 mm

1шт.

18

221870A1

DECAL

bystander, 110 LWA, noise level

1шт.
