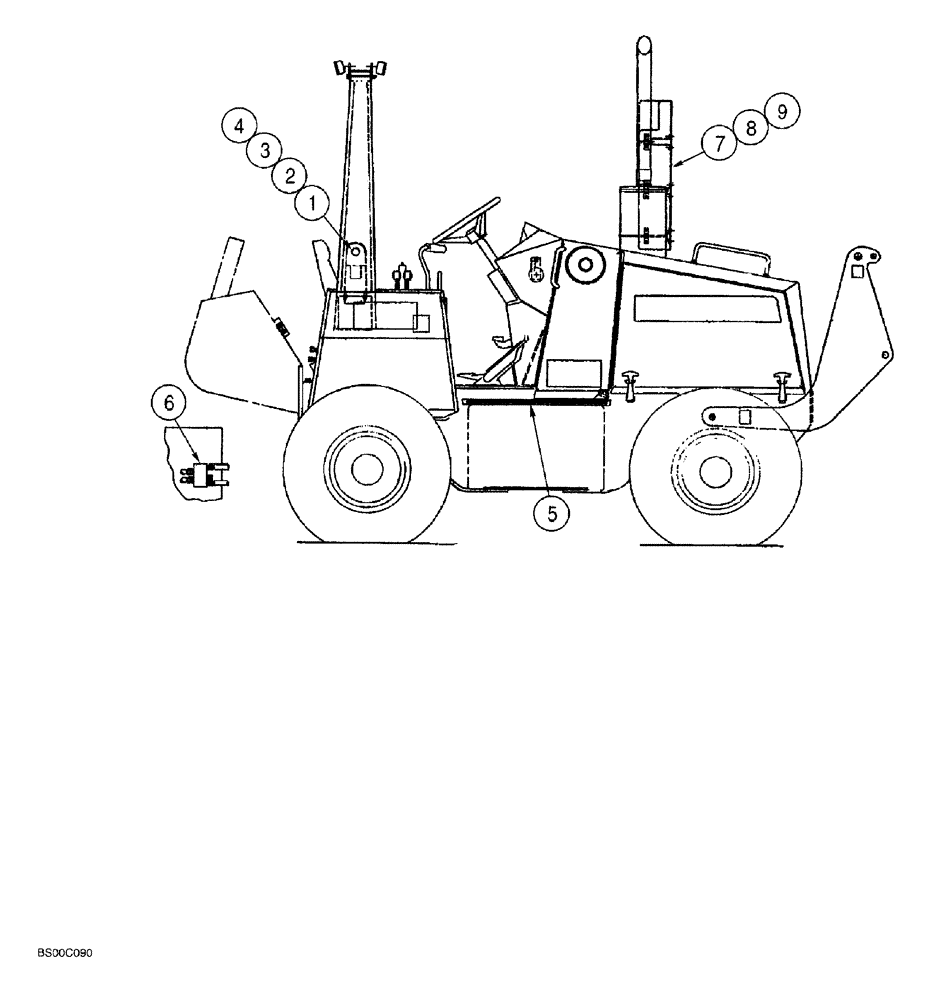

Запчасти Case 860 (09-10) - LIFT HOOKS, LOWERING VALVE AND MUFFLER GUARD (860 TURBO TRENCHER) (09) - CHASSIS/ATTACHMENTS

1

225509A1

EYE

HOOK lift, rear

2шт.

2

826-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

4шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Flat

4шт.

4

829-1416

NUT,M16, Cl 10

4шт.

5

H431171

ADHESIVE STRIP

anti skid, 406 mm (16 inch) long, cut from H431205 bulk strip, see below

2шт.

6

199693A1

VALVE

hydraulic, lowering, used with trencher units

1шт.

7

223514A1

SHIELD

GUARD muffler

1шт.

8

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

adj, 5-3/4 - 6-5/8 inch dia.

2шт.

9

214-3260

HOSE CLAMP,3" - 3-7/8", HD Worm, W/ Liner

adj, 3 - 3-7/8 inch dia.

1шт.

H431205

ADHESIVE STRIP

anti skid, bulk, 635 mm (25 inch) long

1шт.
