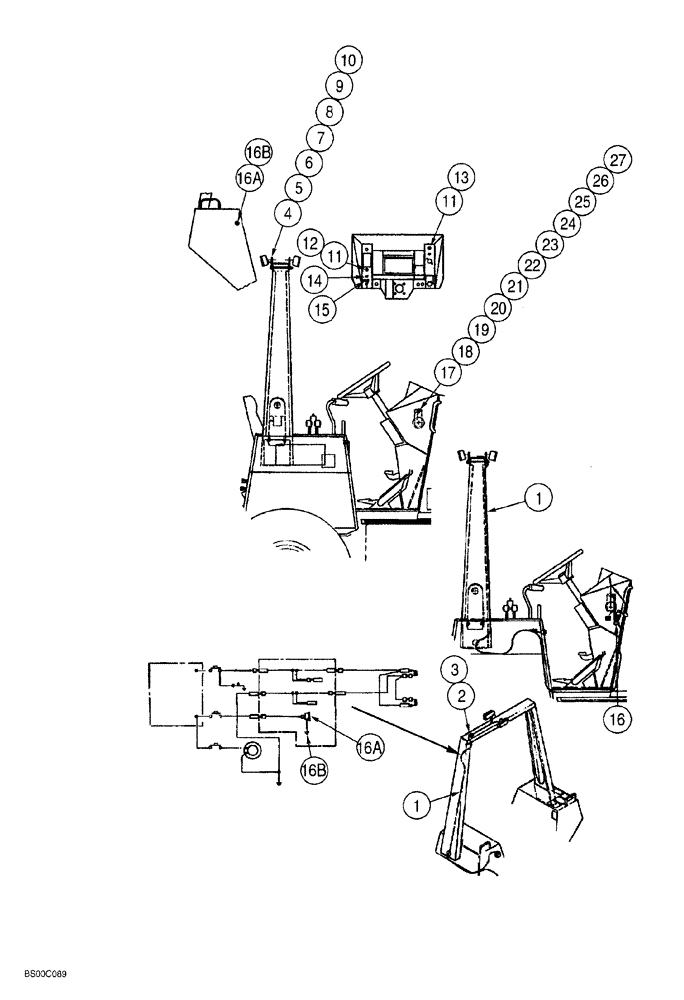

Запчасти Case 860 (04-08) - ELECTRICAL HARNESS, LAMPS AND HORN (860 TURBO TRENCHER) (04) - ELECTRICAL SYSTEMS

1

223534A1

HARNESS

electrical, main

1шт.

2

H439303

CLIP

harness retaining, self adhesive

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

4

D126237

HEADLIGHT

LAMP ASSEMBLY 12 volt, work

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

425108

NUT

hex, 1/2 inch NC

2шт.

7

224451A1

BRACKET

mounting, lamp

2шт.

8

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

2шт.

9

89511010

PUBLICATIONS

flat, 11 x 20 x 2 mm

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

D74330

SWITCH

ASSEMBLY work lamps and auxiliary receptacle

2шт.

12

108314A1

BUTTON

lamp switch

1шт.

13

178112A1

BUTTON

auxiliary switch

1шт.

14

D141486

SWITCH

button, horn

1шт.

15

D124182

DECAL

horn

1шт.

16

A149800

FUSE,10 Amp

red, 10 ampere

1шт.

16a

E47038

CONNECTION

RECEPTACLE lamp, auxiliary

1шт.

16b

142209A1

ELECTRICAL WIRE

WIRE ground

1шт.

17

D123205

HORN

"A" Note, 12 volt

1шт.

18

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

1шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

20

824-1405

NUT,M5, Cl 5

1шт.

21

D122734

SUPPORT

horn mounting

1шт.

22

L30866

LOCK NUT

hex, special, horn mounting

1шт.

23

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

24

95-81207

WASHER,0.53" ID x 0.81" OD x 0.07" Thk

flat, 17/32 x 13/16 x 1/16 inch

1шт.

25

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

26

492-11031

LOCK WASHER,5/16"

2шт.

27

425-105

NUT,5/16"-18, G5

2шт.
