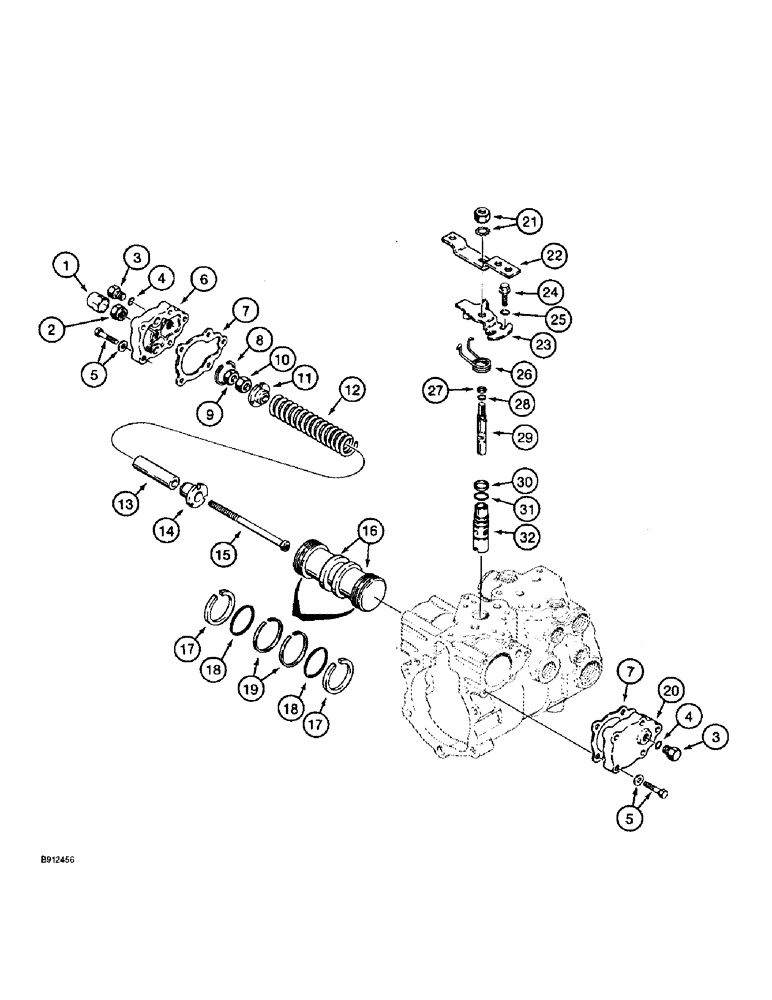

Запчасти Case 860 (6-14) - GROUND DRIVE PUMP ASSEMBLY (REAR SECTION) - H674754 - NEUTRAL START AND SERVO (06) - POWER TRAIN

H674754

PUMP

ASSEMBLY - ground drive (rear section), also includes parts listed on figure 6-12 and 6-16, Includes: Ref. 1 - 32

1шт.

1

N13249

CAP

- servo adjusting nut

1шт.

2

N13260

NUT,Inverted Lock

- special, 5/8 inch NF, adjusting

1шт.

3

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 4 Hex Hd, 9/16"-18 ORB

2шт.

5

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

SCREW - hex, special, 1/4 NC x 1-1/4 inch, grade 8, with lockwasher, servo cover

10шт.

6

H436065

COVER

- servo, adjusting end

1шт.

7

N14063

GASKET

- servo cover

2шт.

8

N13255

RING

- retaining, servo

1шт.

9

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

10

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

11

N13241

GUIDE,1.292" OD

- spring, inner

1шт.

12

N13226

SPRING

- servo

1шт.

13

N13242

SLEEVE

STOP - servo

1шт.

14

N14666

GUIDE,1.292" OD

- spring, outer

1шт.

15

N13267

SCREW

- special, servo

1шт.

16

H435772

PISTON

- servo

1шт.

H673773

KIT

- ring, Includes: Ref. 17 and 18

1шт.

17

N14668

RING, PISTON

RING - piston, servo

2шт.

18

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

19

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

RING - bearing, servo piston

2шт.

20

H436053

COVER

- servo, non-adjusting end

1шт.

21

H436054

SPECIAL NUT,Lock, 5/16" - 18

- includes lock washer, special

1шт.

22

100713A1

LEVER

- control

1шт.

23

N13250

BRACKET

- neutral

1шт.

24

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

- flanged head, special

1шт.

25

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

26

N13248

SPRING,3/4" OD

Neutral

1шт.

27

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

- backup, control spool

1шт.

28

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Control spool, spline end

1шт.

29

H435769

SPOOL

- control, rotary

1шт.

30

V39097

RING

- backup, control spool O-ring

1шт.

31

V39096

O-RING

- control spool, spline end

1шт.

32

N14066

SLEEVE VALVE

SLEEVE - control spool

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
