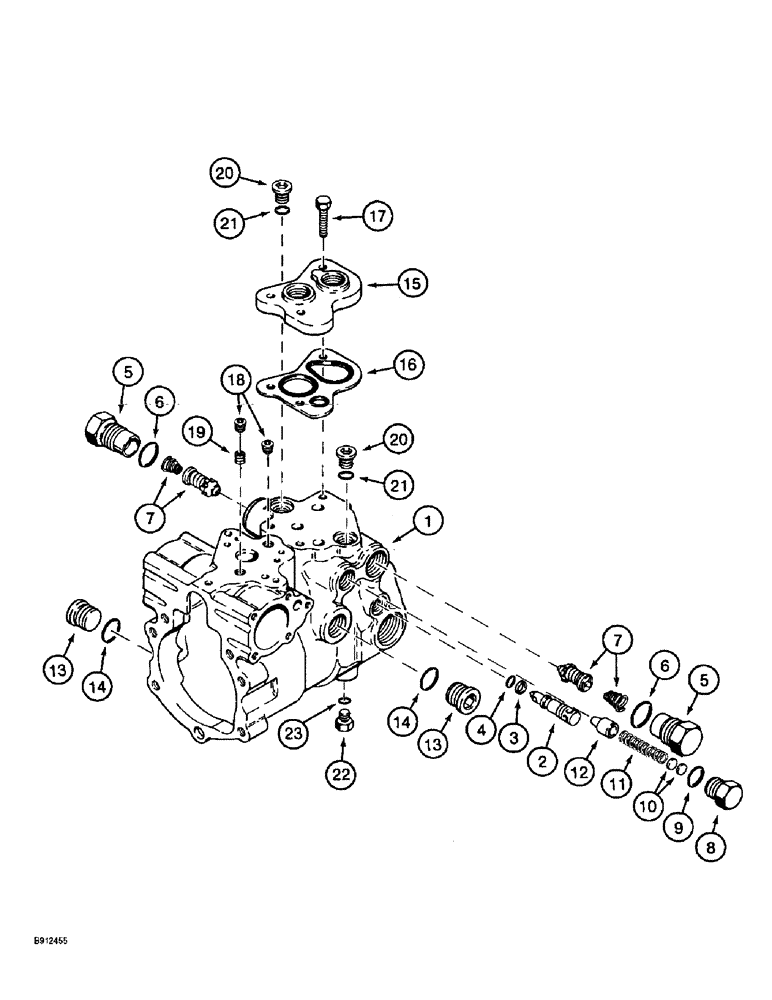

Запчасти Case 860 (6-12) - GROUND DRIVE PUMP ASSEMBLY (REAR SECTION) - H674754 - HOUSING AND VALVES (06) - POWER TRAIN

H674754

PUMP

ASSEMBLY - ground drive (rear section), also includes parts listed on figures 6-14 and 6-16, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - rear drive pump

1шт.

2

H436099

VALVE

- bypass

1шт.

3

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

- backup, bypass valve

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Bypass valve

1шт.

105720A1

VALVE

ASSEMBLY - relief, 5220 PSI, "A" and "B" ports, Includes: Ref. 5 - 7

2шт.

5

NSS

NOT SOLD SEPARAT

PLUG - hex, special, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - relief, pump

1шт.

8

N13266

PLUG

- hex, special

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

H407767

KIT

- shim, relief valve

1шт.

11

V38370

SPRING

- relief valve

1шт.

12

V38371

VALVE

POPPET - relief valve

1шт.

13

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 14 Hex Soc, 1 1/16"-12 ORB

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

101460A1

ADAPTER

- filter

1шт.

16

101461A1

SEAL

PLATE - seal, adapter

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

18

F23137

PLUG

- pipe, special

2шт.

19

H435773

PLUG

- orifice

1шт.

20

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 21 Hex Soc, 9/16"-18 ORB

2шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 23 Hex Hd, 7/16"-20 ORB

1шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
