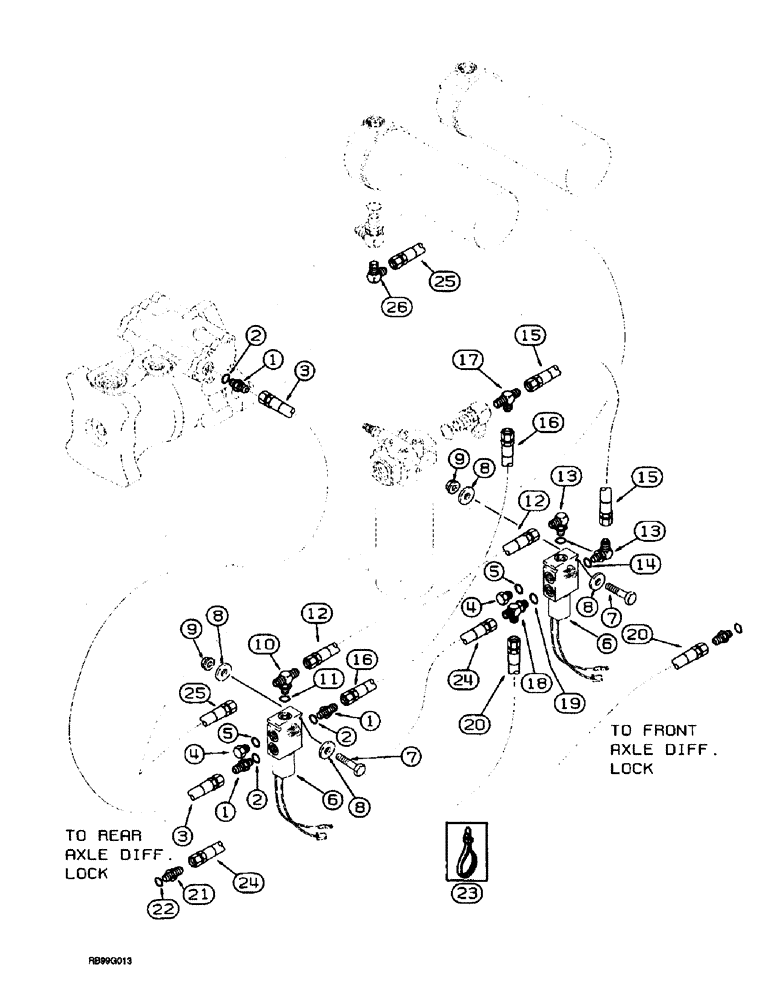

Запчасти Case 860 (6-09A) - SOLENOID VALVE HYDRAULIC CIRCUIT WITH HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 2

3шт.

3

H439126

HOSE

- 1270 mm long, solenoid valve to ground drive motor

1шт.

4

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 5 Hex Hd, 9/16"-18 ORB

2шт.

6

187505C91

VALVE

ASSEMBLY - solenoid, parts list figure 6-30

2шт.

7

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

4шт.

8

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

12шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

10

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch adj O-ring branch x flare x flare, Includes: Ref. 11

1шт.

12

D81836

HOSE

- 406 mm (16 inch) long, solenoid valve to solenoid valve

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 14

2шт.

15

H438085

HOSE

- 267 mm (10-1/2 inch) long, charge filter to hydraulic locking differential solenoid valve

1шт.

16

H439124

HOSE

- 457 mm long, charge filter to ground drive motor solenoid valve

1шт.

17

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

- 9/16-18 flare branch x flare x 1/4 inch PT, Includes: Ref. 19

1шт.

18

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj O-ring boss, Includes: Ref. 19

1шт.

20

H439224

HOSE

- 508 mm (20 inch) long, solenoid valve to front axle differential

1шт.

21

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 22

2шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

24

139517C1

HYDRAULIC HOSE

HOSE - 2032 mm (80 inch) long, solenoid valve to rear axle differential

1шт.

25

H439125

HOSE

- 760 mm long, solenoid valve to return filter

1шт.

26

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
