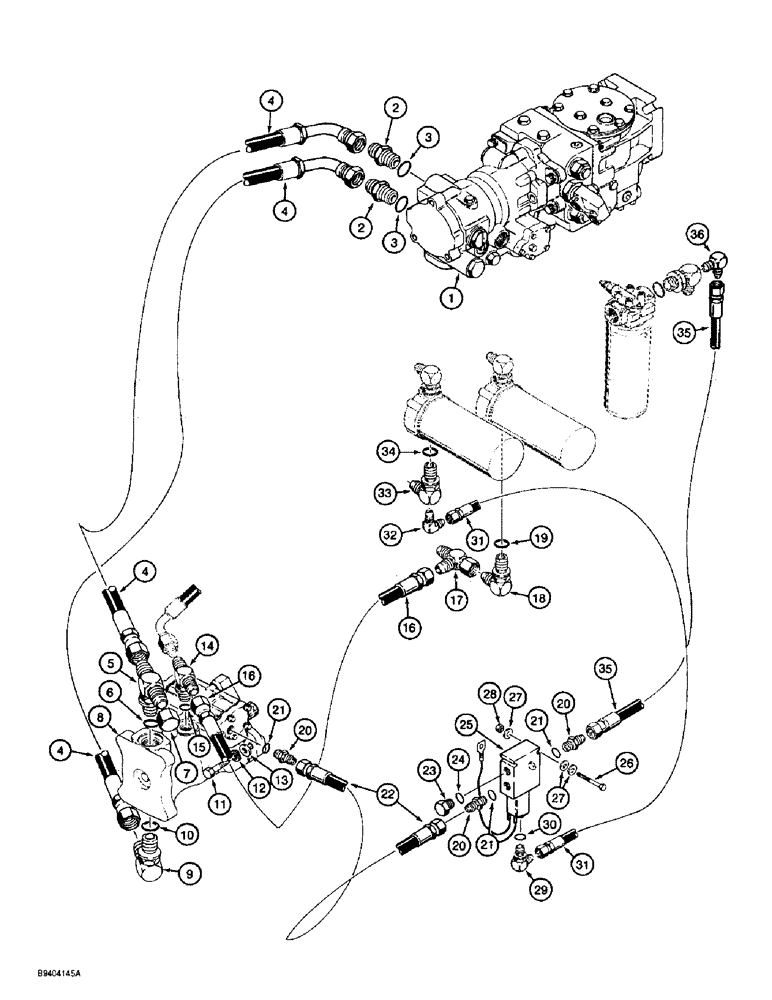

Запчасти Case 860 (6-08) - GROUND DRIVE HYDRAULIC CIRCUIT - GROUND DRIVE MOTOR AND SOLENOID VALVE CIRCUITS (06) - POWER TRAIN

1

H674786

PUMP

ASSEMBLY - tandem, parts list figures 6-10 - 6-24, see figure 6-06 for mounting

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

4

121147A1

HOSE

- 880 mm (34-5/8 inch) long, tandem pump to ground drive motor

2шт.

5

218-5197

TEE,1 5/16"-12, 37 Degree x1 1/16"-12 x 1 5/16"-12, O-Ring Br

- 1-5/16-12 adj O-ring branch x fl x 1-1/16-12 inch fl, Includes: Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

7

218-758

CAP,37 Degree, 1 5/16"-12

- hex, 1-5/16-12 inch

1шт.

8

H674155

HYDRAULIC MOTOR

MOTOR ASSEMBLY - ground drive, parts list figure 6-28

1шт.

9

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

11

864-12040

HEX SOC SCREW,M12 x 40mm, Cl 8.8

BOLT - hex socket, 12 - 1.75 x 40 mm

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

H274894

WASHER

- flat, special

2шт.

14

218-5505

TEE,1 1/16"-12, 37º x 7/8"-14 x 1 1/16"-12, O-Ring Br

- 1-1/16-12 adj O-ring branch x flare x 7/8-14 inch flare, Includes: Ref. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

16

H439120

HOSE

- 1125 mm long, ground drive motor to return filter

1шт.

17

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel

1шт.

18

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 19

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, solenoid valve hydraulic circuit without hydraulic locking differential, Incl. Ref. 21

3шт.

See Figure 6-9A for additional solenoid valve hydraulic circuit used on models with hydraulic locking differential.

1шт.

22

H439126

HOSE

- 1270 mm long, solenoid valve to ground drive motor

1шт.

23

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 24 Hex Hd, 9/16"-18 ORB

1шт.

25

187505C91

VALVE

ASSEMBLY - solenoid, parts list figure 6-30, solenoid valve hydraulic circuit without hydraulic locking differential

1шт.

See Figure 6-9A for additional solenoid valve hydraulic circuit used on models with hydraulic locking differential.

1шт.

26

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

27

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

6шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 30

1шт.

31

H439125

HOSE

- 760 mm long, solenoid valve to return filter

1шт.

32

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT, Includes: Ref. 34

1шт.

33

H439211

FITTING

ELBOW - 90 degree, special, l, Includes: Ref. 34

1шт.

34

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

35

H439124

HOSE

- 457 mm long, charge filter to solenoid valve

1шт.

36

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
