Запчасти Case 860 (6-06) - GROUND DRIVE HYDRAULIC CIRCUIT - TANDEM PUMP SUCTION, CHARGE, AND RETURN CIRCUITS (06) - POWER TRAIN

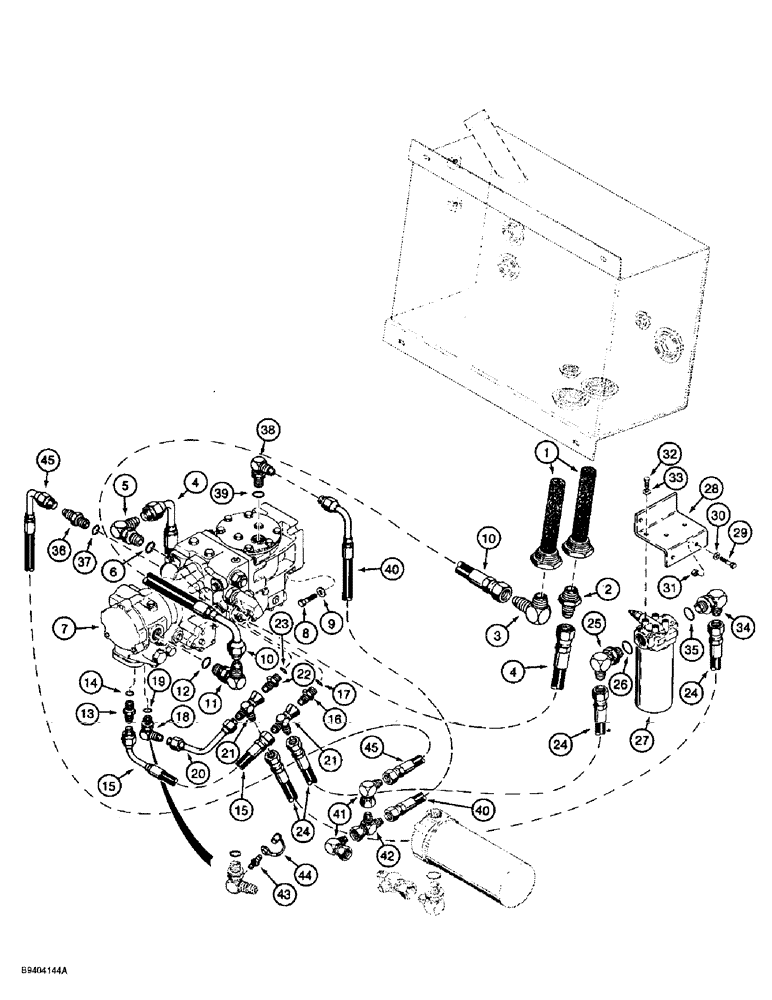

Схема запчастей Case 860 - (6-06) - GROUND DRIVE HYDRAULIC CIRCUIT - TANDEM PUMP SUCTION, CHARGE, AND RETURN CIRCUITS (06) - POWER TRAIN
32
14
27
45
34
45
17
36
13
22
30
15
26
40
1
19
16
38
7
43
11
24
39
42
24
12
15
18
5
4
40
20
2
35
31
41
33
29
37
44
4
3
28
25
10
24
21
21
10
9
6
23
8

Артикул

Название

Примечание

Количество

1

H434204

BAFFLE

SCREEN - suction

2шт.

2

218-1019

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/4"-11 1/2, NPTF

ADAPTER - straight, 1-5/16-12 flare x 1-1/4 inch PT

1шт.

3

218-1068

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/4"-11 1/2, NPTF

- 90 degree, 1-5/16-12 flare x 1-1/4 inch PT

1шт.

4

H439121

HOSE

- 705 mm long, reservoir to tandem pump, front

1шт.

5

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

7

H674786

PUMP

ASSEMBLY - tandem, parts list figures 6-10 - 6-24

1шт.

8

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8, Special

4шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

10

H439121

HOSE

- 705 mm long, reservoir to tandem pump, rear

1шт.

11

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

H439176

HOSE

- 430 mm long, tandem pump rear, Serial Range: section-tee

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

106587A1

ELBOW

- 90 degree, special, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

H674898

TUBE,15.9 mm OD x 136.4, 125 mm L

- charge, tandem pump to tee

1шт.

21

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x adj straight thread

2шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

H439118

HOSE

- 665 mm long, charge filter circuit

2шт.

25

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

27

R52031

FILTER

ASSEMBLY - hydraulic oil charge, parts list figure 6-32

1шт.

28

H439014

BRACKET

- mounting, charge filter

1шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

31

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

32

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

34

H439312

FITTING

ELBOW - 90 degree, special, Includes: Ref. 34

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

36

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 37

1шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

38

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 39

1шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

40

H439119

HOSE

- 625 mm (24-5/8 inch) long, return, tandem, Serial Range: pump-tee

1шт.

41

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

2шт.

42

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel

1шт.

43

H434164

COUPLING

COUPLER - quick check

1шт.

44

H434163

DUST CAP

CAP - dust

1шт.

45

127470A1

HOSE

- 850 mm (33-7/16 inch) long, return, tandem pump to elbow at tee

1шт.
