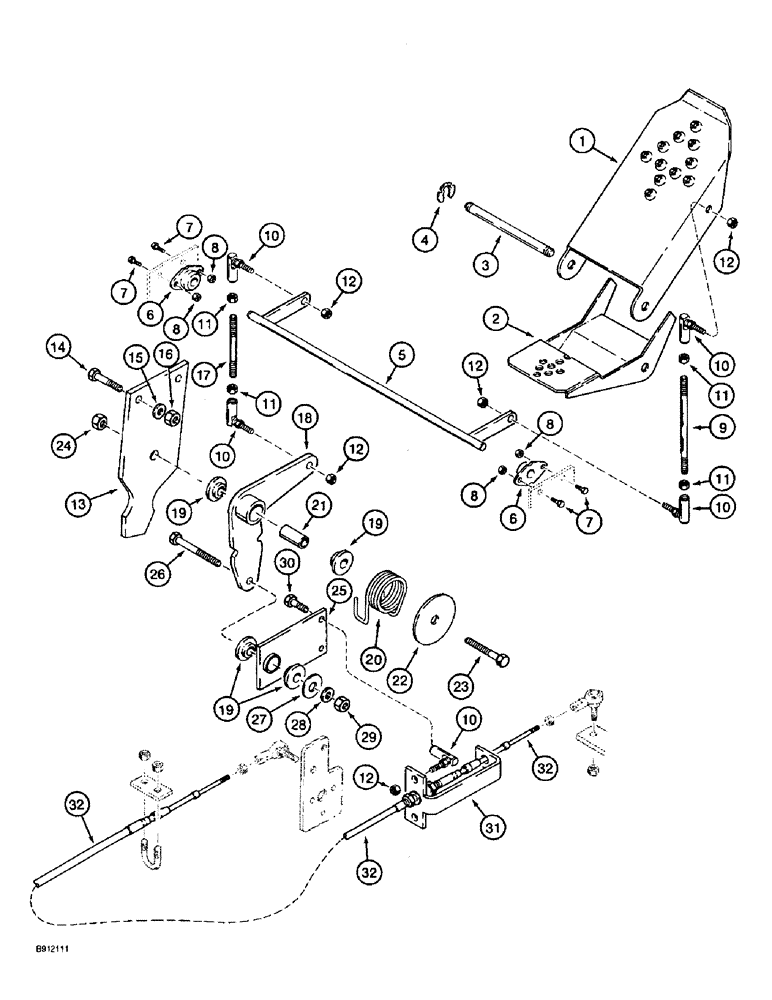

Запчасти Case 860 (6-04) - GROUND DRIVE CONTROLS - PEDALS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
H403816
PEDAL
- forward ground drive control
1шт.
2
H672181
PEDAL
- heel, reverse ground drive control
1шт.
3
H403840
PIN
- pivot
1шт.
4
D143415
SNAP RING,0.50” ID, Klipring
RING - retaining, pedal pin
2шт.
5
H674948
SHAFT
- control, ground drive
1шт.
6
H755785
FLANGED BEARING,15.88mm ID
BEARING - flange
2шт.
8
231-5144
SERRATED NUT,Flg, USR, 1/4"-20
4шт.
9
H437546
ROD
- pedal control
1шт.
10
D121417
BALL JOINT,3/8" - 24 x 1-3/8"
JOINT - ball, 3/8 inch NF, female
6шт.
11
425-156
JAM NUT,Jam, 3/8"-24, G5
- hex, jam, 3/8 inch NF
4шт.
12
232-4616
LOCK NUT,3/8"-24, GC
NUT, LOCK, 3/8"-24, GC
6шт.
13
H439054
BRACKET
- bellcrank mounting
1шт.
14
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
2шт.
15
496-21041
WASHER,13/32" x 13/16" x .089", HDN
- flat, 13/32 x 13/16 x 3/32", hardened
1шт.
16
232-4116
NUT,3/8"-16, GC
NUT, LOCK, 3/8"-16, GC
2шт.
17
H439053
ROD
- linkage, bellcrank to neutral centering
1шт.
18
H674224
PIVOT
BELLCRANK - cable drive
1шт.
19
D128616
BUSHING
- plastic
4шт.
20
H436303
SPRING
- centering
1шт.
21
H435694
SPACER
- 19 x 22 x 36.5 mm, bellcrank pivot
1шт.
22
H436215
WASHER
- flat, special, 13.4 x 80 x 3,4 mm
1шт.
23
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- hex, 1/2 NC x 2-1/2 inch
1шт.
24
232-4118
NUT,1/2"-13, GC
NUT, LOCK, 1/2"-13, GC
1шт.
25
H674970
LINK
- ground drive control
1шт.
26
413-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- hex, 3/8 NC x 2-1/2 inch
1шт.
27
H439075
SPACER
- bellcrank pivot
1шт.
28
496-41041
WASHER,13/32" x 1 1/8" x .134"
- flat, 13/32 x 1-1/8 x 9/64 inch, hardened
1шт.
29
232-4116
NUT,3/8"-16, GC
NUT, LOCK, 3/8"-16, GC
1шт.
30
414-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5
2шт.
31
H439055
BRACKET
- mounting, drive cable
1шт.
32
102691A1
BOWDEN CONTROL
CABLE - ground drive control, replaces H674226, see figure 6-02 for hand control connection
1шт.
Выбрано товаров: 32
