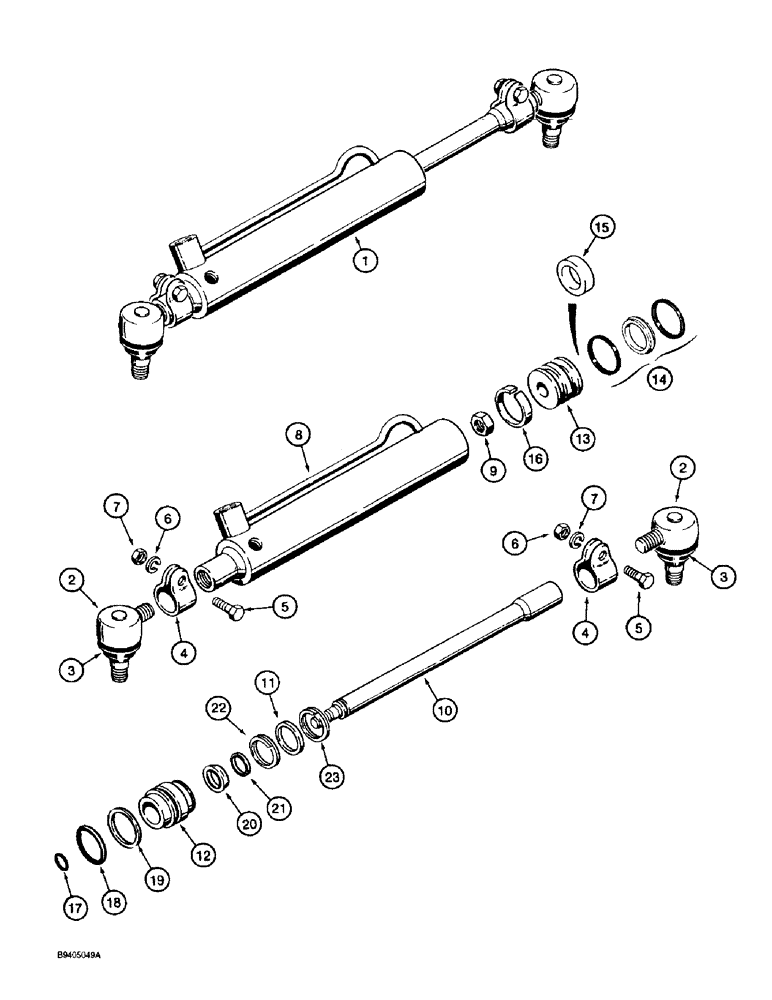

Запчасти Case 860 (5-22) - STEERING CYLINDER ASSEMBLY - H672129 (05) - STEERING

1

H672129

CYLINDER

ASSEMBLY - 38 (1-1/2) ID x 215 mm (8-1/2 inch) stroke, steering, Includes: Ref. 2 - 23

4шт.

2

A40962

BALL JOINT

JOINT - ball, male thread, Includes: Ref. 3

2шт.

3

A41424

SEAL

BOOT - dust cover

1шт.

A27080

CLAMP

ASSEMBLY - end, Includes: Ref. 4 - 7

2шт.

4

NSS

NOT SOLD SEPARAT

CLAMP - end

1шт.

5

414-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex, 3/8 NF x 1-1/2 inch

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

8

N13623

TUBE,12.60, 1.15" L

- cylinder

1шт.

9

131-1145

JAM NUT,5/8" - 18

NUT - hex, ham, self locking, 9/16 inch NF

1шт.

10

N13624

ROD

- cylinder

1шт.

11

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

- gland

1шт.

12

D83189

GLAND

- cylinder, includes bushing, see D147757 kit below

1шт.

Part of Gland Assembly P/N D147757

1шт.

13

D83190

PISTON

- cylinder, see D147754 kit below

1шт.

Part of Piston P/N D147754

1шт.

D83184

GASKET KIT

KIT - cylinder repair, no longer available, replaced by D148100, Includes: Ref. 14 - 22

1шт.

D148100

GASKET KIT

KIT - seal, cylinder repair, replaces D83184 kit, Includes: Ref. 14 - 22

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - piston, three piece, D83184 kit, no longer available, replaced by item 15, one piece seal

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston, one piece, D148100 kit

1шт.

Part of Piston P/N D147754

1шт.

16

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of Piston P/N D147754

1шт.

17

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

Rod, to piston -113, Cl 7, .549" ID x .103" Thk

1шт.

18

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

Gland -218, 90 Duro, 1.234" ID x .139" Thk

1шт.

Part of Gland Assembly P/N D147757

1шт.

19

A45035

SEALING RING,34.88mm ID x 38mm OD x 1.58mm W

RING - backup, gland O-ring

1шт.

Part of Gland Assembly P/N D147757

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

Part of Gland Assembly P/N D147757

1шт.

21

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

WIPER - piston rod

1шт.

Part of Gland Assembly P/N D147757

1шт.

22

102-23150

SNAP RING,#150, 1.591", Int, Spiral

RING - internal spiral, retaining, No. 150, gland, inner

1шт.

23

102-12125

SNAP RING,#125, 1.188", Ext Spiral

RING - external spiral retaining, No. 125, outer

1шт.

D147757

HEAD

GLAND ASSEMBLY - cylinder, with seals, Includes: Ref. 12, 18, 19, 20, 21

1шт.

D147754

PISTON

- cylinder, with seals, Includes: Ref. 13, 15, 16

1шт.
