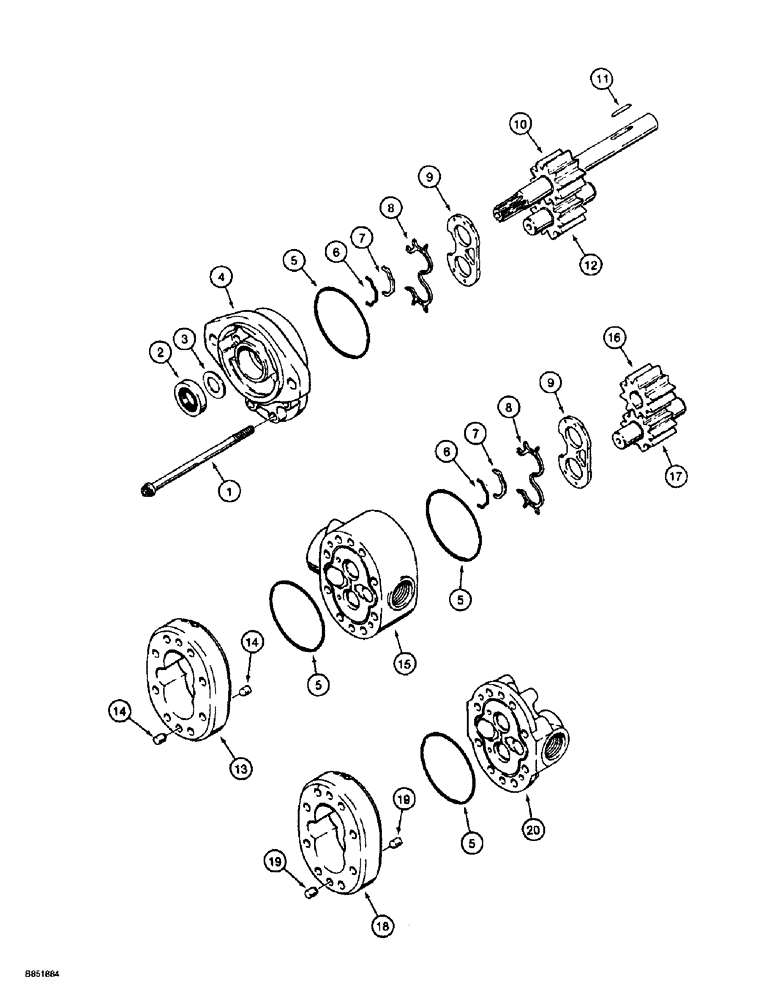

Запчасти Case 860 (5-16) - DUAL PUMP ASSEMBLY - H672435 (05) - STEERING

H672435

PUMP, HYDRAULIC

PUMP ASSEMBLY - dual, Includes: Ref. 1 - 20

1шт.

1

166-19

12 PT SCREW,Flg, 5/16" - 18 x 5 1/2", Gr 8

BOLT, 12 Pt Flg, 5/16"-18 x 5 1/2", G8

8шт.

2

H83733

SEAL

- shaft

1шт.

Part of Seal Kit P/N N13954

1шт.

3

N13135

WASHER

- special, shaft seal

1шт.

4

N8932

COVER

- pump, drive shaft end

1шт.

5

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk

4шт.

Part of Seal Kit P/N N13954

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - molded

2шт.

Part of Seal Kit P/N N13954

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - bearing

2шт.

Part of Seal Kit P/N N13954

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - wear plate

2шт.

Part of Seal Kit P/N N13954

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - wear, pump housing

2шт.

Part of Seal Kit P/N N13954

1шт.

10

N13447

GEAR

- with shaft, drive, pump

1шт.

11

N13443

KEY

- drive gear shaft

1шт.

12

N13444

GEAR

- with shaft, driven, pump, drive shaft end

1шт.

N8887

BODY

HOUSING ASSEMBLY - gear, pump, drive shaft end, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - gear, pump

1шт.

14

71120

VALVE

PIN - dowel, housing

4шт.

15

N13445

PLATE

HOUSING - gear, center

1шт.

16

N13446

GEAR

- rear, slip fit, drive gear shaft

1шт.

17

N13449

GEAR

- with shaft, driven, pump, port end

1шт.

N13448

BODY

HOUSING ASSEMBLY - gear, pump, port end, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - gear, pump, port end

1шт.

19

71120

VALVE

PIN - dowel, housing

4шт.

20

N13442

PLATE

COVER - port end

1шт.

N13954

SEAL KIT

- seal, Includes: Ref. 2, 5, 6, 7, 8, 9, alos includes (1) A7983 O ring and (2) H755975 O rings not used in this application

1шт.
