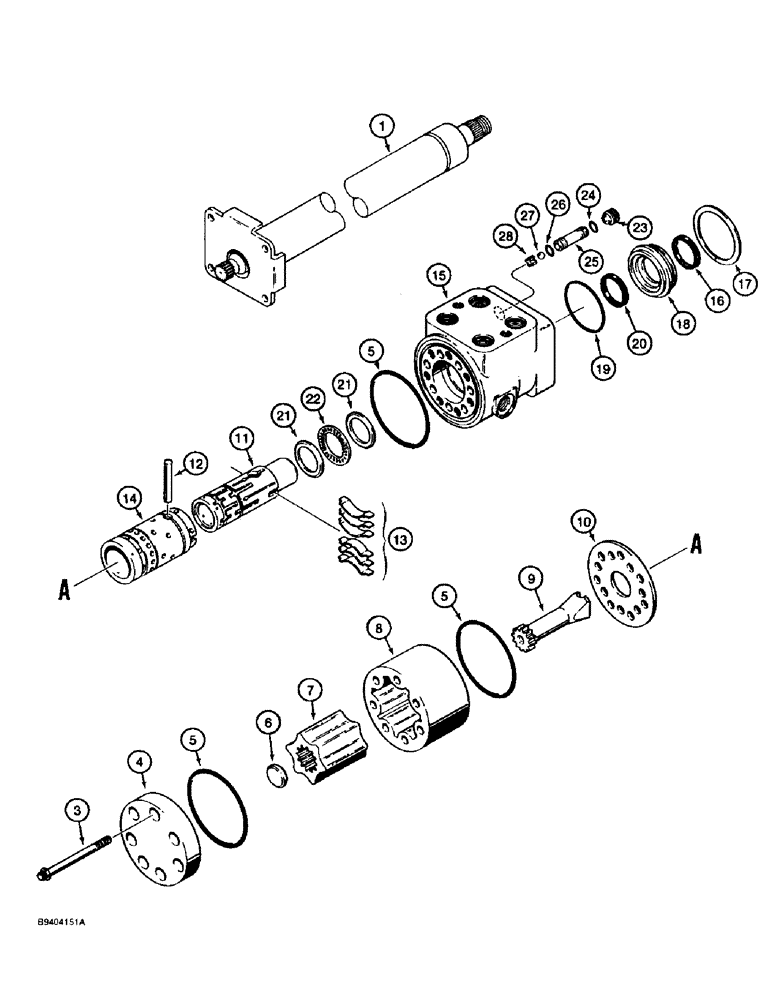

Запчасти Case 860 (5-15A) - STEERING CONTROL VALVE ASSEMBLY - 141535A1 (05) - STEERING

1

H672220

STEERING COLUMN

COLUMN ASSEMBLY - steering, component parts not serviced separately

1шт.

141535A1

VALVE

ASSEMBLY - steering control, Includes: Ref. 3 - 28

1шт.

3

136586A1

SCREW,6 Pt, Torx Hd, 5/16" - 24 x 1 3/4"

BOLT - 5/16 NF x 1-3/4

7шт.

4

135867A1

CAP

- end, without O-ring groove

1шт.

5

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

-040, 70 Duro, 2.864" ID x .070" Thk

3шт.

Part of Seal Kit P/N 135882A1

1шт.

6

K964246

SPACER

- drive shaft

1шт.

135868A1

ROTOR

GEROTOR - steering control valve, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ROTOR - steering control valve

1шт.

8

NSS

NOT SOLD SEPARAT

STATOR - steering control valve

1шт.

9

L30878

DRIVE SHAFT

SHAFT - drive, gerotor

1шт.

10

135869A1

PLATE

- spacer, with o ring groove

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

12

135874A1

PIN

- roll

1шт.

N14250

KIT

- centering spring, set of 6, Includes: Ref. 13 and 13A

1шт.

13

L30889

SPRING

- spool

6шт.

13a

NSS

NOT SOLD SEPARAT

SPACER - spring, if used, not shown

2шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE - spool

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - steering control valve

1шт.

16

697494R91

OIL SEAL

SEAL - 1 inch ID, gland, outer

1шт.

Part of Seal Kit P/N 135882A1

1шт.

17

S110169

WASHER

RING - retaining, gland

1шт.

18

S110170

BUSHING

GLAND - seal, spool

1шт.

19

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 135882A1

1шт.

20

201893H1

SEALING RING

SEAL - square section, gland, outer

1шт.

Part of Seal Kit P/N 135882A1

1шт.

21

D82804

RACE

- thrust, bearing

2шт.

22

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Roller

1шт.

23

D82805

SET SCREW

SCREW - set, body

1шт.

24

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

Part of Seal Kit P/N 135882A1

1шт.

25

D82806

VALVE SEAT

SEAT - ball

1шт.

26

L30893

O-RING,1/16" Thk x 5/16" ID

7/16 x 5/16 x 1/16 in

1шт.

Part of Seal Kit P/N 135882A1

1шт.

27

211-1010

BALL,5/16" OD

5/16; 24,CRS

1шт.

28

L35368

RETAINER

- check ball

1шт.

135882A1

SEAL KIT

KIT - seal, Includes: Ref. 5, 16, 19, 20, 24, 26

1шт.
