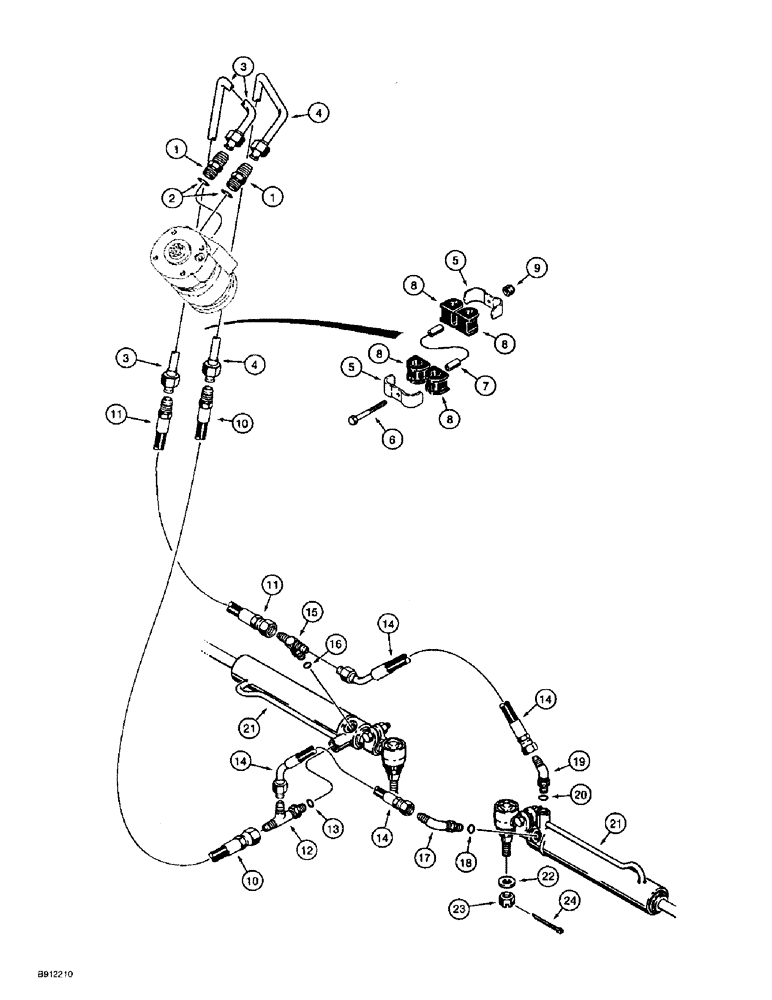

Запчасти Case 860 (5-10) - FRONT STEERING HYDRAULIC CIRCUIT - STEERING CONTROL VALVE TO FRONT STEERING CYLINDERS (05) - STEERING

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 2

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

H672268

TUBE,12.7 mm OD

- steering control valve "R" port to left-hand steering hose

1шт.

4

H672271

TUBE,12.7 mm OD

- steering control valve "L" port to left-hand steering hose

1шт.

5

D68646

CLAMP

- tubes

4шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

7

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

4шт.

8

D67296

GROMMET

INSULATOR - rubber, tubes

8шт.

9

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

10

H433632

HYDRAULIC HOSE,9.52 mm ID x 1100.00 mm, SAE 100R1

- Front steering, From "L" port tube to LH steering cylinder 9.52 mm ID x 1100.00 mm, SAE 100R1

1шт.

11

H433672

HYDRAULIC HOSE,9.52 mm ID x 1200.00 mm, SAE 100R1

- Front steering, From "R" port tube to LH steering cylinder, Closed end 9.52 mm ID x 1200.00 mm, SAE 100R1

1шт.

12

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj O-ring boss, Includes: Ref. 13

1шт.

14

247036A1

HOSE,9.52 mm ID x 750.00 mm

- 750 mm (29-1/2 inch) long, cylinder to cylinder

2шт.

15

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch adj O-ring branch x flare x flare, Includes: Ref. 16

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 18

1шт.

19

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 20

1шт.

21

H672129

CYLINDER

ASSEMBLY - 38 (1-1/2) ID x 215 mm (8-1/2 inch) stroke, steering, parts list figure 5-22

2шт.

22

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special, hardened

1шт.

23

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

4шт.

24

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

4шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
