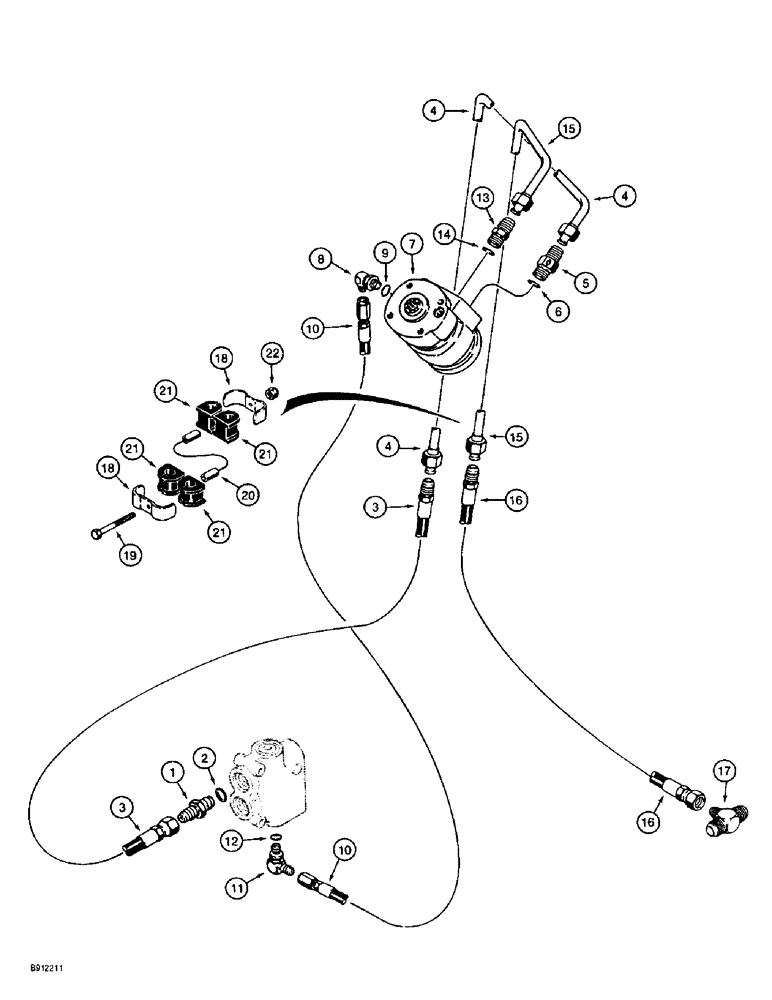

Запчасти Case 860 (5-08) - FRONT STEERING HYDRAULIC CIRCUIT - PRIORITY FLOW DIVIDER VALVE TO STEERING CONTROL VALVE (05) - STEERING

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

H433671

HOSE

- 1000 mm (39-3/8 inch) long, flow divider, to steering control valve

1шт.

4

H672268

TUBE,12.7 mm OD

- front steering supply hose to steering valve

1шт.

5

L104449

LOCK VALVE

VALVE - check, steering, Includes: Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - control, steering, parts list figure 5-14 or 5-15A, see figure 5-02 for mounting

1шт.

8

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 9

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

L52207

HYDRAULIC HOSE,0.25" ID x 63.00", SAE 100R1

HOSE, , Steering Valve to Priority Valve 0.25" ID x 63.00", SAE 100R1

1шт.

11

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 12

1шт.

12

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

H674951

TUBE,12.7 mm OD

- return, steering control valve to return hose

1шт.

16

H439123

HOSE

- 690 mm long, return , tube to tee, see figure 8-12 for return hydraulic circuit

1шт.

17

218-1578

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

- 3/4-16 flare branch x 1-1/16-12 inch flare x flare

1шт.

18

D68646

CLAMP

- tubes

2шт.

19

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

20

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

2шт.

21

D67296

GROMMET

INSULATOR - rubber, tubes

4шт.

22

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.
