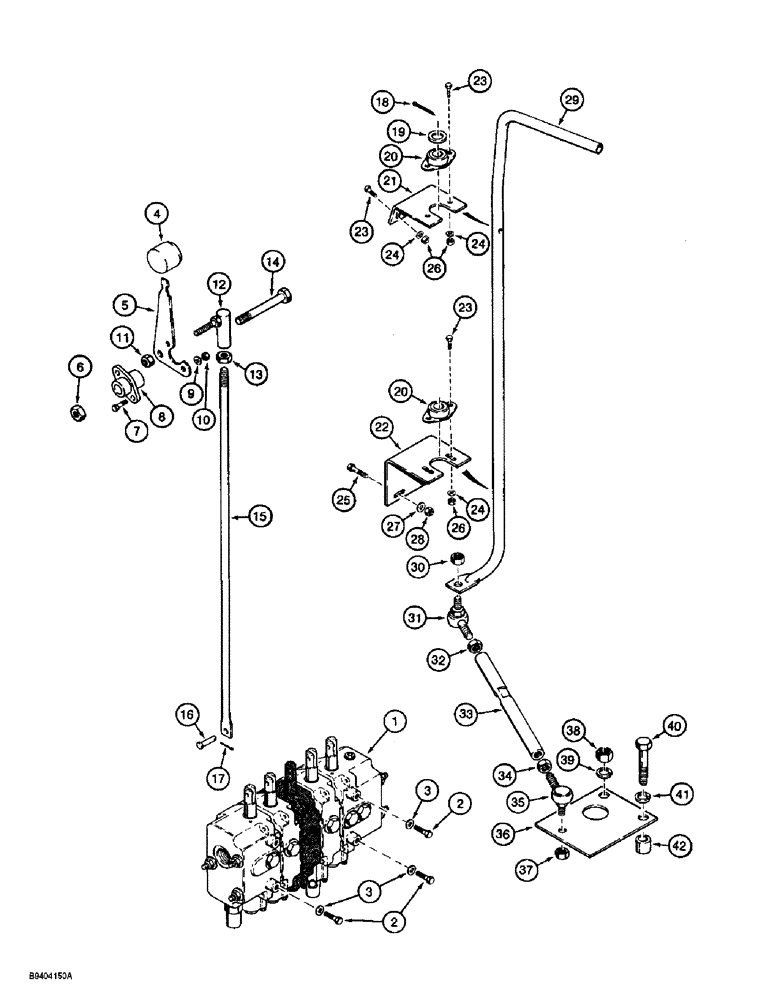

Запчасти Case 860 (5-04) - REAR STEERING CONTROLS (05) - STEERING

1

H674793

VALVE

ASSEMBLY - control, rear steering and attachment, parts list figures 8-018 - 8-026

1шт.

2

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

3

H426775

WASHER

- flat, special, hardened

3шт.

4

A177438

KNOB

- rear steering control, black

1шт.

5

H436209

HANDLE

LEVER - rear steering control

1шт.

6

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

8

A162299

BEARING,15.95mm ID

- flange, lever

1шт.

9

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

2шт.

10

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

11

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

12

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT - ball, 3/8 inch NF, female

1шт.

13

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

14

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

15

H438982

LINK

ROD - 630 mm long, valve lift control, Serial Range: lever-valve

1шт.

16

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

17

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

18

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

19

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

20

H755785

FLANGED BEARING,15.88mm ID

BEARING - flange

2шт.

21

H434650

ANGLE

BRACKET - bearing mounting, upper

1шт.

22

H434651

ANGLE

BRACKET - bearing mounting, lower

1шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

6шт.

24

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

6шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

26

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

6шт.

27

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

28

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

29

H434649

TUBE,15.9 mm OD

- rear wheel position indicator

1шт.

30

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

31

R47941

JOINT TURNING

JOINT - ball, male, 3/8 inch NF, Serial Range: rod-tube

1шт.

32

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

33

H434652

ROD

- rear wheel position indicator

1шт.

34

125-11011

NUT,3/8"-24, G5, LH

1шт.

35

H433969

JOINT TURNING

JOINT - ball, left-hand threads, rod

1шт.

36

H434766

ARM

- wheel position indicator

1шт.

37

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

38

825-11414

NUT,M14 x 1.5, Cl 8

1шт.

39

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

1шт.

40

814-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 8.8

1шт.

41

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

1шт.

42

H357764

SPACER

- wheel position indicator arm

1шт.
