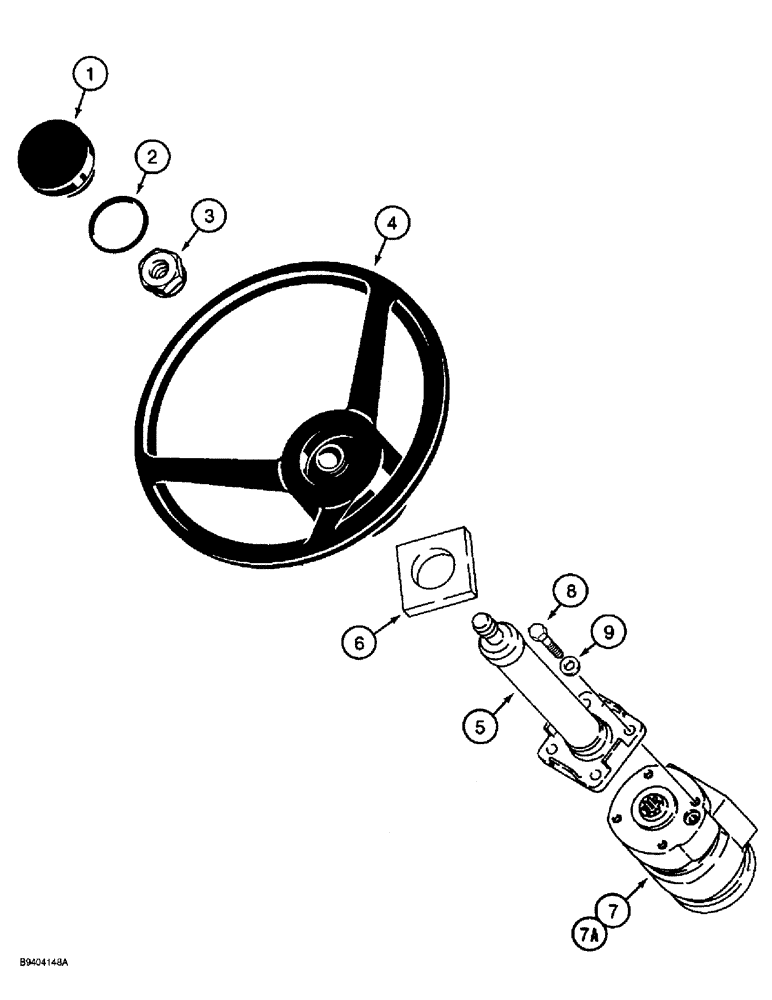

Запчасти Case 860 (5-02) - STEERING WHEEL AND MOUNTING (05) - STEERING

1

A62210

PLUG

CAP - steering wheel

1шт.

2

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

Steering wheel cap -227, 70 Duro, 2.109" ID x .139" Thk

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, steering wheel retaining

1шт.

4

A65544

STEERING WHEEL

Tractor

1шт.

5

H672220

STEERING COLUMN

COLUMN ASSEMBLY - steering, component parts not serviced separately

1шт.

6

H433646

SPACER

- steering column

1шт.

7

H672219

VALVE

ASSEMBLY - steering control, parts list figure 5-14

1шт.

H672219 steering valve is assembled with Ferry head bolts and 141535A1 steering valve is assembled with Torx head bolts.

1шт.

7a

141535A1

VALVE

ASSEMBLY - steering control, parts list figure 5-15A

1шт.

H672219 steering valve is assembled with Ferry head bolts and 141535A1 steering valve is assembled with Torx head bolts.

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.
