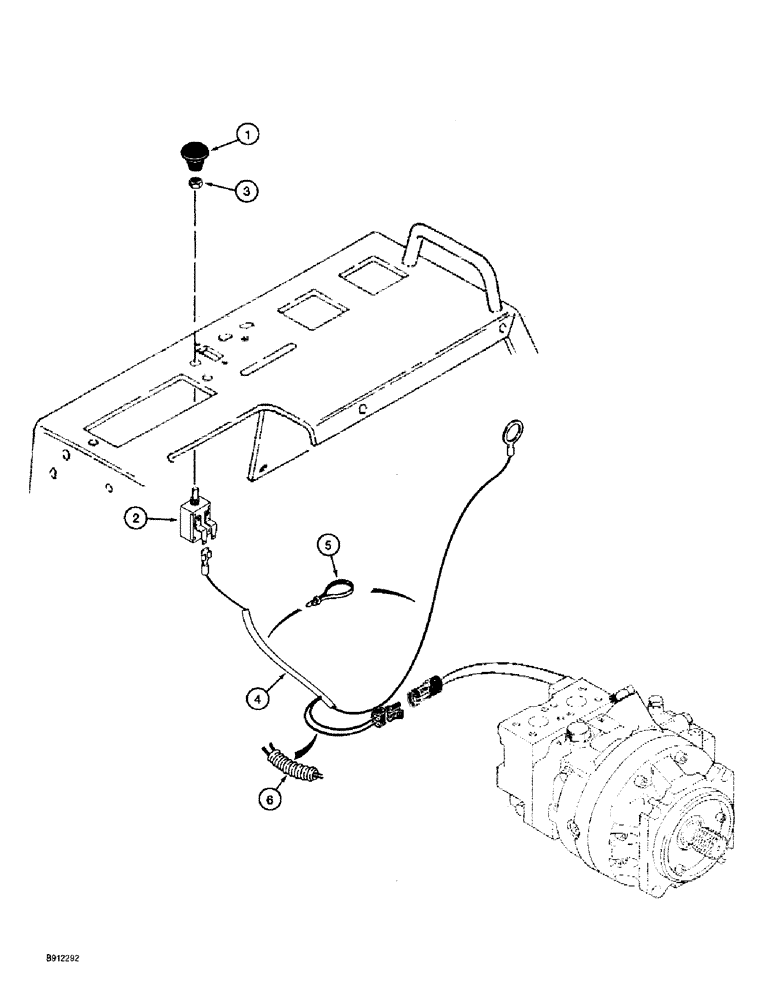

(4-22) - 2-SPEED TRENCHER DRIVE MOTOR ELECTRICAL CIRCUIT USED ON MODELS WITH TRENCHER

Запчасти Case 860 (4-22) - 2-SPEED TRENCHER DRIVE MOTOR ELECTRICAL CIRCUIT USED ON MODELS WITH TRENCHER (04) - ELECTRICAL SYSTEMS

Схема запчастей Case 860 - (4-22) - 2-SPEED TRENCHER DRIVE MOTOR ELECTRICAL CIRCUIT USED ON MODELS WITH TRENCHER (04) - ELECTRICAL SYSTEMS
3
5
2
4
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D88134

KNOB

-

1шт.

D74330

SWITCH

ASSEMBLY, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

SWITCH - 2-speed trencher drive motor

1шт.

3

N7557

NUT

- hex, special, 3/8 inch NF, special

1шт.

4

H439380

HARNESS

- 2-speed trencher drive motor switch

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

6

R40572

CONDUIT

- plastic, 635 mm (25 inch) long

1шт.
