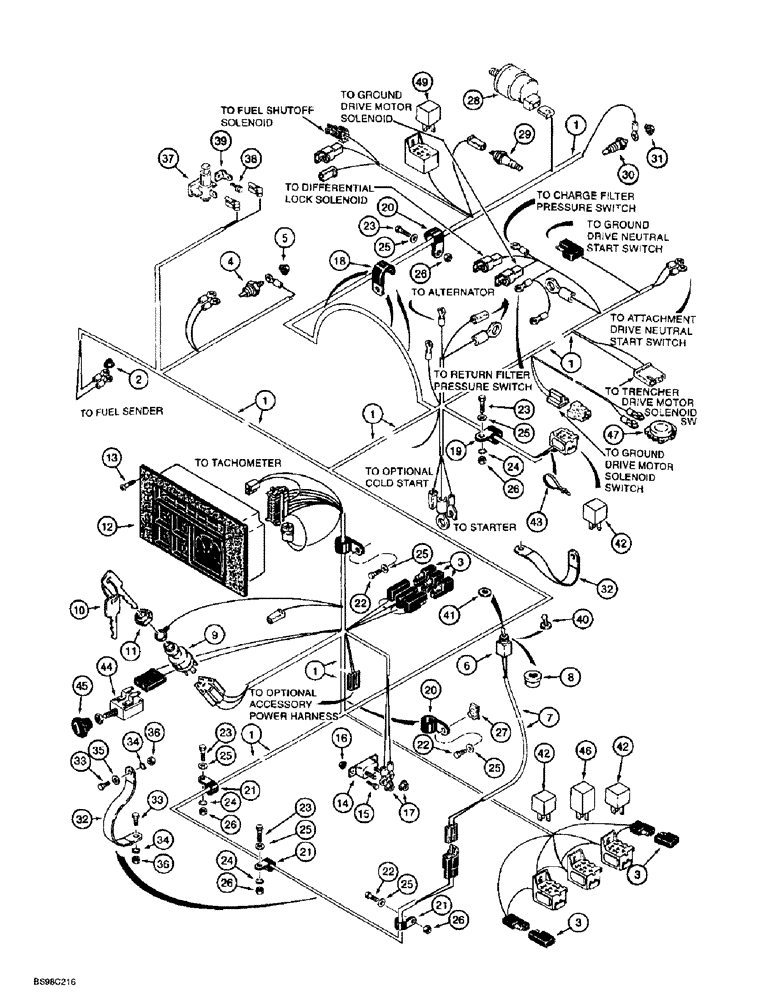

Запчасти Case 860 (4-17I) - MAIN WIRING HARNESS AND CONNECTIONS - WITH HYDRAULIC LOCKING DIFFERENTIAL AND SEAT INTERLOCK (04) - ELECTRICAL SYSTEMS

1

283352A1

HARNESS

- wiring, main

1шт.

2

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

3

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness, alternator protecting, neutral and seat

5шт.

4

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - hydraulic oil temperature

1шт.

5

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

H675066

SWITCH

ASSEMBLY - toggle, speed select, see figure 6-02 for ground drive control lever, Includes: Ref. 6 - 8

1шт.

6

H438667

IGNITION SWITCH

SWITCH - toggle, speed select

1шт.

7

NSS

NOT SOLD SEPARAT

CABLE - speed select, Serial Range: switch-harness

1шт.

8

H439229

BUSHING

- switch mounting

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes keys, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SWITCH - ignition, without keys

1шт.

10

A77313

SET OF 2 KEYS

KEY - set of two; metal without padding

1шт.

11

A77314

NUT

- hex, special, ignition switch mounting

1шт.

12

141759A1

CLUSTER

ASSEMBLY - instrument, 12 volt, parts list figure 4-19A

1шт.

13

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.

14

L104329

BREAKER

- circuit, 15 amp

1шт.

15

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

- machine, pan Phillips, No. 8 NC x 1/2 inch

2шт.

16

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

17

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

2шт.

18

A37179

CLIP

CLAMP - P-type, use existing hardware

3шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

2шт.

20

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-type, 1 inch ID

2шт.

21

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

P-type 3/4", Insul, 5/16" Bolt

3шт.

22

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

3шт.

23

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

24

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

3шт.

25

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

7шт.

26

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

5шт.

27

H346650

NUT

- U-type, 5/16 inch NC

1шт.

28

293797A1

RESTRICTION SWITCH

SWITCH, RESTRICTION, Air cleaner

1шт.

29

A162297

SWITCH

SENDER - engine oil pressure

1шт.

30

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - water temperature

1шт.

31

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

32

D73383

STRAP

- ground, 330 mm (13 inch) long

2шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

34

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

36

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

37

N8343

SWITCH

- parking brake indicator, see figure 7-02 for parking brake lever assembly and mounting

1шт.

38

281-34414

SELF-TAP SCREW,Hex Wash Hd, #8 x 7/8"

SCREW - self-tapping, hex washer head, No. 8 NC x 7/8 inch

1шт.

39

H439264

PLATE, LOCKING

TAB - terminal

1шт.

40

116400A1

BOOT

- toggle switch

1шт.

41

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Install washer over item 40, boot 3/8", SAE

1шт.

42

D128310

RELAY

- 30 ampere, starter, neutral and switch

3шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

44

D74330

SWITCH

ASSEMBLY - differential lock solenoid

1шт.

45

D88134

KNOB

- differential lock solenoid

1шт.

46

1994819C1

RELAY

- time delay, prior to P.I.N. JAF0199324

1шт.

46

224787A1

RELAY

- timer, P.I.N. JAF0199324 and after

1шт.

47

175875A1

SWITCH

- seat interlock

1шт.

48

250838A2

HYD CONNECTOR

CONNECTOR - M10 x 1/8 inch PT, not shown

1шт.

49

314451A1

RELAY

- heavy duty sealed, 45 amp, fuel solenoid

1шт.
