Запчасти Case 860 (4-17A) - MAIN WIRING HARNESS AND CONNECTIONS - WITH HYDRAULIC LOCKING DIFFERENTIAL (04) - ELECTRICAL SYSTEMS

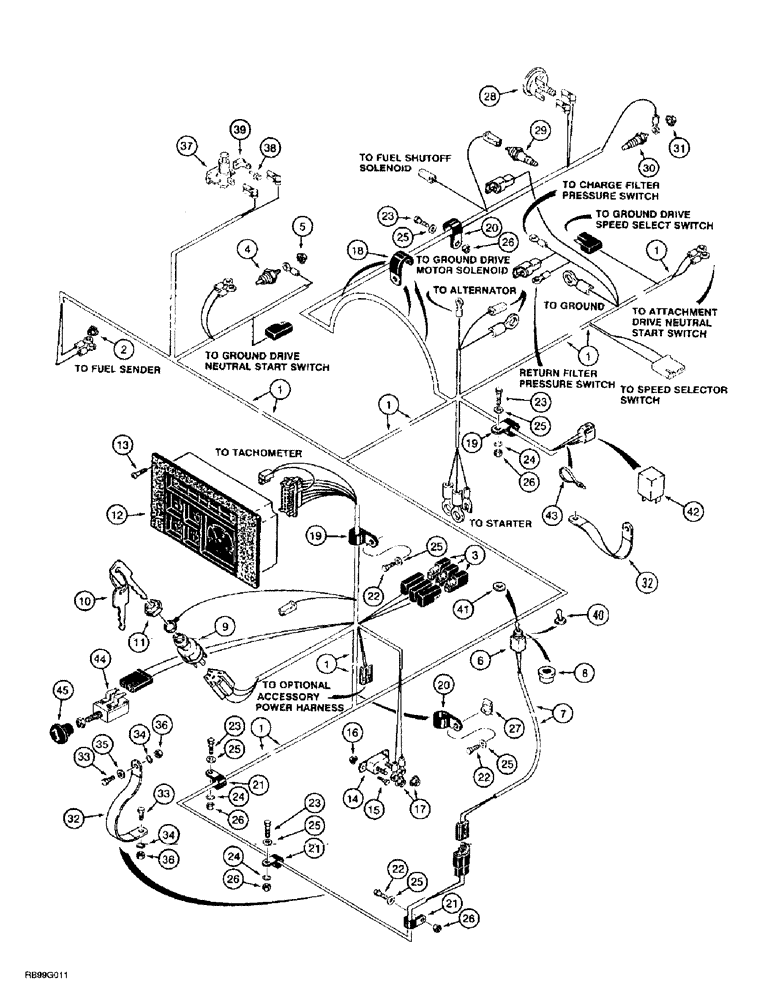

Схема запчастей Case 860 - (4-17A) - MAIN WIRING HARNESS AND CONNECTIONS - WITH HYDRAULIC LOCKING DIFFERENTIAL (04) - ELECTRICAL SYSTEMS
1
36
23
26
31
36
24
1
2
20
3
13
19
25
1
33
25
17
25
7
26
27
35
22
25
23
11
8
34
21
37
26
41
4
1
24
43
15
25
1
1
39
30
25
23
32
19
18
44
42
22
21
22
40
10
32
24
28
33
16
14
26
45
29
5
25
23
9
26
6
38
34
20
12
21

Артикул

Название

Примечание

Количество

1

121138A1

HARNESS

- main

1шт.

2

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

3

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness, alternator protecting

3шт.

4

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - temperature, hydraulic oil

1шт.

5

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

H675066

SWITCH

ASSEMBLY - toggle, speed select, see figure 6-02 for ground drive control lever, Includes: Ref. 6 - 8

1шт.

6

H438667

IGNITION SWITCH

SWITCH - toggle, speed select

1шт.

7

NSS

NOT SOLD SEPARAT

CABLE - speed select, Serial Range: switch-harness

1шт.

8

H439229

BUSHING

- switch mounting

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes keys, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SWITCH - ignition, without keys

1шт.

10

A77313

SET OF 2 KEYS

KEY - set of two; metal without padding

1шт.

11

A77314

NUT

- hex, special, ignition switch mounting

1шт.

12

A187966

CLUSTER

ASSEMBLY - instrument, 12 volt, parts list figure 4-18

1шт.

13

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.

14

D37203

BREAKER

- circuit, 15 ampere

1шт.

15

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

- machine, pan Phillips, No. 8 NC x 1/2 inch

2шт.

16

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

17

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

2шт.

18

A37179

CLIP

CLAMP - P-type, harness, use existing hardware

3шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Harness 5/8", Insul, 3/8" Bolt

2шт.

20

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-type, 1 inch ID, harness

2шт.

21

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

P-type, Harness 3/4", Insul, 5/16" Bolt

3шт.

22

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

3шт.

23

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

24

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

3шт.

25

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

7шт.

26

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

5шт.

27

H346650

NUT

- U-type, 5/16 inch NC

1шт.

28

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

29

A162297

SWITCH

SENDER - engine oil pressure

1шт.

30

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - water temperature

1шт.

31

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

32

D73383

STRAP

- ground, 330 mm (13 inch) long

2шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

34

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

36

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

37

N8343

SWITCH

- parking brake indicator, see figure 7-02 for parking brake lever assembly and mounting

1шт.

38

281-34414

SELF-TAP SCREW,Hex Wash Hd, #8 x 7/8"

SCREW - self-tapping, hex washer head, No. 8 NC x 7/8 inch

1шт.

39

H439264

PLATE, LOCKING

TAB - terminal

1шт.

40

116400A1

BOOT

- toggle switch

1шт.

41

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Install washer over item 40, boot 3/8", SAE

1шт.

42

D128310

RELAY

- 30 ampere, starter

1шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

44

D74330

SWITCH

ASSEMBLY - differential lock solenoid

1шт.

45

D88134

KNOB

- switch, differential lock solenoid

1шт.
