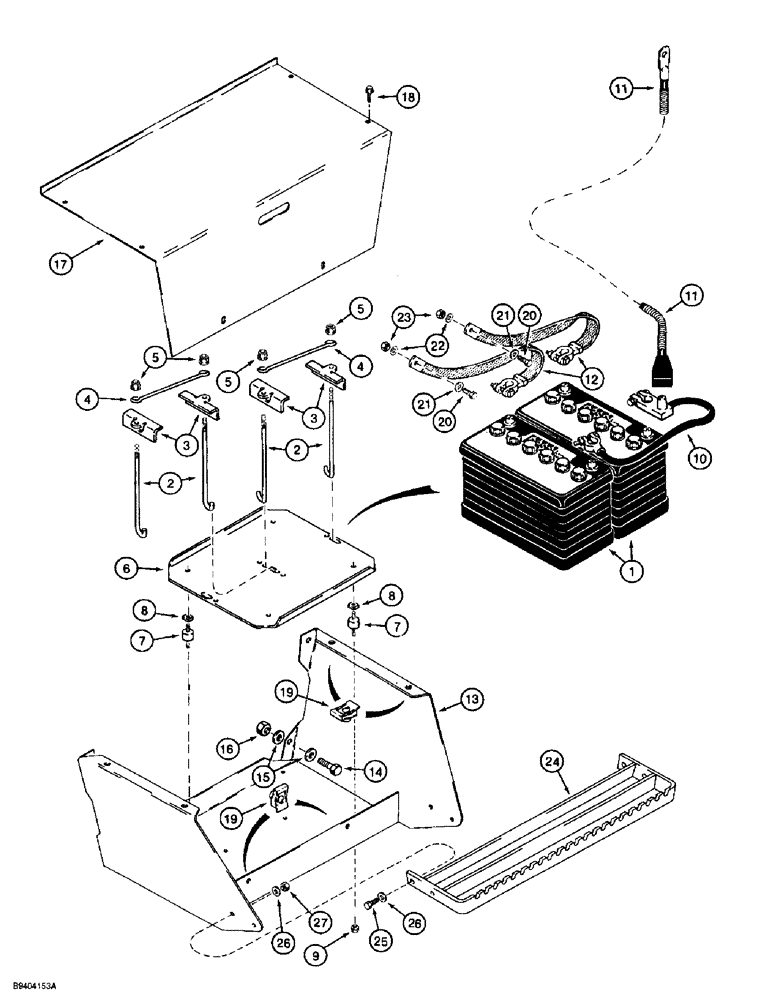

Запчасти Case 860 (4-12) - BATTERY, MOUNTING, AND CABLES - DUAL BATTERY COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

BHC30

BATTERY, DRY

BATTERY - 12 volt, dry type, service replacement

2шт.

See Figure 4-10 for models without the dual battery cold start system.

1шт.

2

H436311

BOLT

- J-type, special, battery hold down

4шт.

3

D125079

BRACKET

- battery hold-down

4шт.

4

D135073

BRACKET

ROD - battery hold-down

2шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

H673486

LARGE PLATE

TRAY - battery

1шт.

7

H359216

MOUNTING PARTS

INSULATOR - battery tray

4шт.

8

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC

4шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, self-locking

4шт.

10

H433512

CABLE

- battery to battery, positive jumper

1шт.

11

H433291

CABLE

- battery, positive

1шт.

12

D83485

CABLE,300mm L

STRAP - battery, negative ground

2шт.

13

H674882

BRACKET

- battery mounting

1шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

16

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

17

H438914

COVER

- battery

1шт.

18

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

19

H346650

NUT

- U-type, 5/16 inch NC

6шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

22

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

23

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

24

H672373

STEP

- operators compartment access

1шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

27

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.
