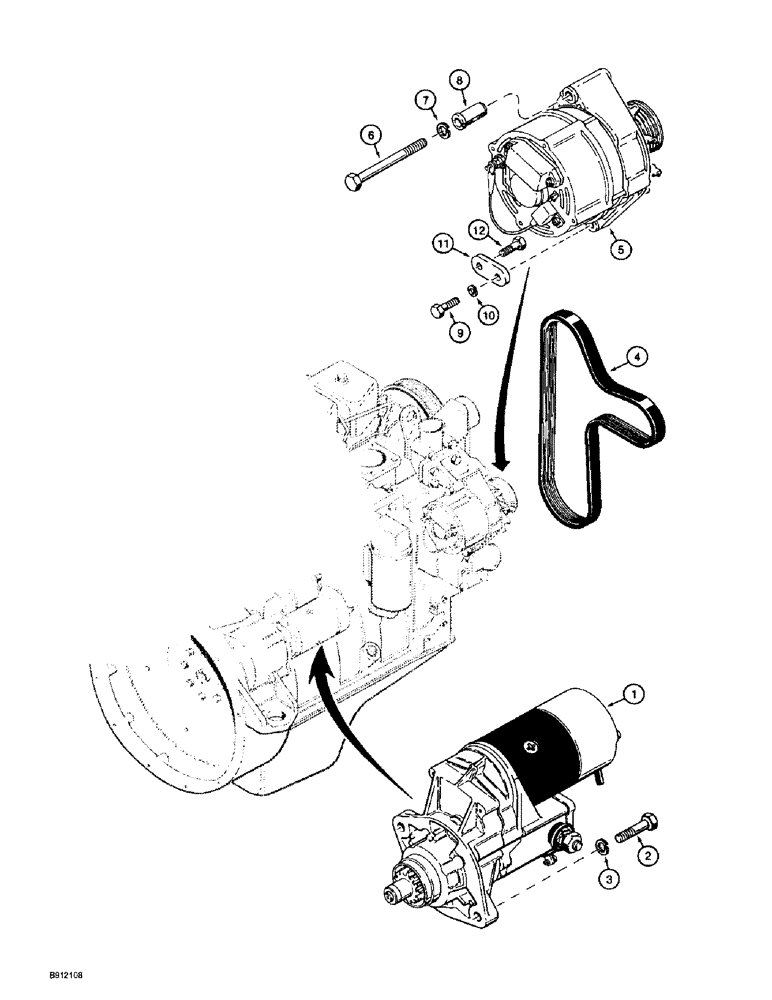

Запчасти Case 860 (4-08) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

1987559C1

STARTING MOTOR

STARTER ASSEMBLY - engine, new, parts list figures 4-02 and 4-04

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, STARTER, 12 volt, 2.5KW

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Bolt, Hex, M10 x 40, 8.8, Full Thd

2шт.

3

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

2шт.

4

J911557

V-BELT,27.92mm W x 1422.4mm L, 8 Ribs

BELT - fan, and alternator, replaces J903091

1шт.

5

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - engine, 65 ampere, parts list figure 4-06

1шт.

5

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

5

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

5

A187873GV

ALTERNATOR

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 100 mm

1шт.

7

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

1шт.

8

J902469

SPACER

SPACER - alternator mounting

1шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 8 - 1.25 x 25 mm

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

J903089

SUPPORT

BRACE - alternator mounting

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

1шт.
