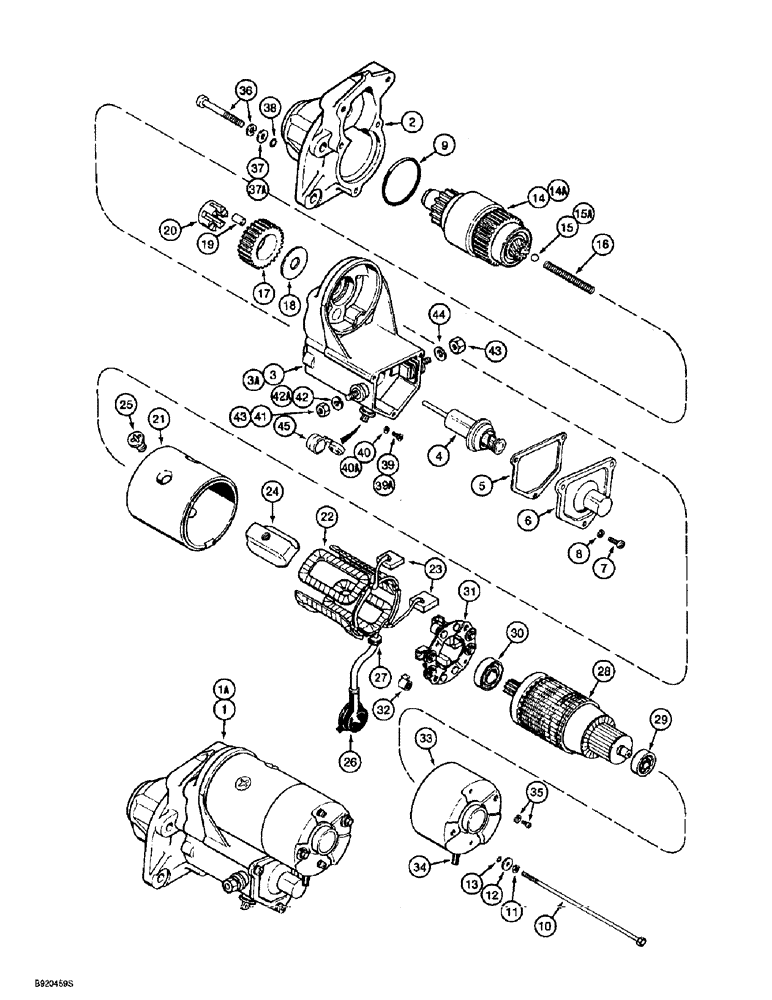

Запчасти Case 860 (4-02) - STARTER (04) - ELECTRICAL SYSTEMS

1

A170746

STARTING MOTOR

STARTER ASSEMBLY - engine, new (Nippondenso No. 128000-0210), order item 1A, 1987559C1 starter assembly, Includes: Ref. 1A - 45

1шт.

1

AR170746

STARTING MOTOR

Starter Assembly - engine, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

AC170746

CORE-STARTER

Return Part Number - use this part number to return starter core for credit when using a remanufactured assembly

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN A170746

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1a

1987559C1

STARTING MOTOR

STARTER ASSEMBLY - engine, new (Nippondenso No. 128000-0211)

1шт.

1a

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, STARTER, 12 volt, 2.5KW

1шт.

1a

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1a

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1a

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

2

A46948

HOUSING

HOUSING - drive end

1шт.

3

A46949

IGNITION SWITCH

SWITCH ASSEMBLY - magnetic, A170746 starter, Includes: Ref. 4 - 8

1шт.

3a

104588A1

SOLENOID

SWITCH ASSEMBLY - magnetic, 198755C1 starter, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID - switch

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER - cover screw

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

O-RING - 47 ID x 2.4 mm wide, Serial Range: switch-housing

1шт.

A47243

BOLT

BOLT ASSEMBLY - through, Includes: Ref. 10 - 13

2шт.

10

A47128

BOLT

BOLT - tie, starter

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

12

495-81252

WASHER,#12

WASHER, (Flat, 1/4" x 9/16" x 1/16") #12

1шт.

13

A47127

O-RING

O-RING - bolt seal

1шт.

14

A47231

CLUTCH

CLUTCH - drive, A170746 starter

1шт.

14a

104587A1

CLUTCH

CLUTCH - drive, 1987559C1 starter

1шт.

15

211-1011

BALL,11/32" Dia

BALL - chrome alloy steel, 11/32 inch, grade 24, A170746 starter

1шт.

15a

211-1311

BALL,11/32" Dia

BALL - chrome alloy steel, 11/32", grade 200, 1987559C1 starter

1шт.

16

A47232

SPRING

SPRING - compression, 2-13/16 inch free length, clutch drive

1шт.

17

A47233

GEAR

PINION - idler

1шт.

18

A47234

WASHER

WASHER - thrust, idler pinion

1шт.

19

A47235

ROLLER BEARING

ROLLER - pinion bearing

5шт.

20

A47236

RETAINER

RETAINER - roller bearing

1шт.

A47240

HOUSING

HOUSING ASSEMBLY - with coil and brushes, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - starter

1шт.

22

NSS

NOT SOLD SEPARAT

COIL - field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSHES - starter

2шт.

24

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT - magnetic switch terminal

1шт.

27

A47241

PLATE

PLATE - lock

1шт.

28

A47242

ARMATURE

ARMATURE ASSEMBLY - starter, Includes: Ref. 29 and 30

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

BEARING, BALL, Commutor end

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING - drive end

1шт.

31

A47239

HOLDER

HOLDER ASSEMBLY - brush (Includes 2 brushes), Includes: Ref. 32

1шт.

32

A47249

SPRING

SPRING - brush tension

4шт.

33

A47237

FRAME

FRAME - commutator end

1шт.

34

A47238

COVER

COVER - end frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW ASSEMBLY - with washer, brush retaining, brush, Serial Range: holder-cover

2шт.

A47230

BOLT

BOLT ASSEMBLY - commutor end cover to drive end housing, Includes: Ref. 36 - 38

3шт.

36

A47129

CAPTIVE WASHER SCREW

BOLT ASSEMBLY - with washer

1шт.

37

495-81252

WASHER,#12

WASHER, (Flat, 1/4" x 9/16" x 1/16"), If used #12

1шт.

37a

195-2015

WASHER

WASHER - flat, 1/4 x 1-3/4 x 1/16 inch, if used

1шт.

38

A47130

O-RING

O-RING - bolt seal

1шт.

39

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

SCREW - machine, pan Phillips, No. 8 NC x 3/8", A170746 starter

1шт.

39a

A46950

SCREW,M5 x 0.8 x 0.8mm

SCREW - terminal, special, 5 x 8 mm, pan Phillips head, 1987559C1 starter

1шт.

40

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - internal tooth lock, No. 8, A170746 starter

1шт.

40a

892-11005

LOCK WASHER,M5

WASHER, LOCK, , 1987559C1 starter M5

1шт.

41

425-146

JAM NUT,3/8" - 16, Gr 5

NUT - hex, jam, 3/8 inch NC, A170746 starter, battery terminal

1шт.

42

492-11038

LOCK WASHER,3/8"

LOCK WASHER, , A170746 starter 3/8"

1шт.

42a

892-11010

LOCK WASHER,M10

LOCK WASHER, , 1987559C1 starter M10

1шт.

43

825-1410

NUT,M10, Cl 8

Nut, , Field coil terminal, 1 used on A170746 starter; 2 used on 1987559C1 starter M10, Cl 8

1-2шт.

44

A10454

WAVE WASHER

WASHER - spring, field coil terminal

1шт.

45

104589A1

BUSHING

BUSHING - insulation, used with 1987559C1 starter, magnetic switch by-pass protection

1шт.
