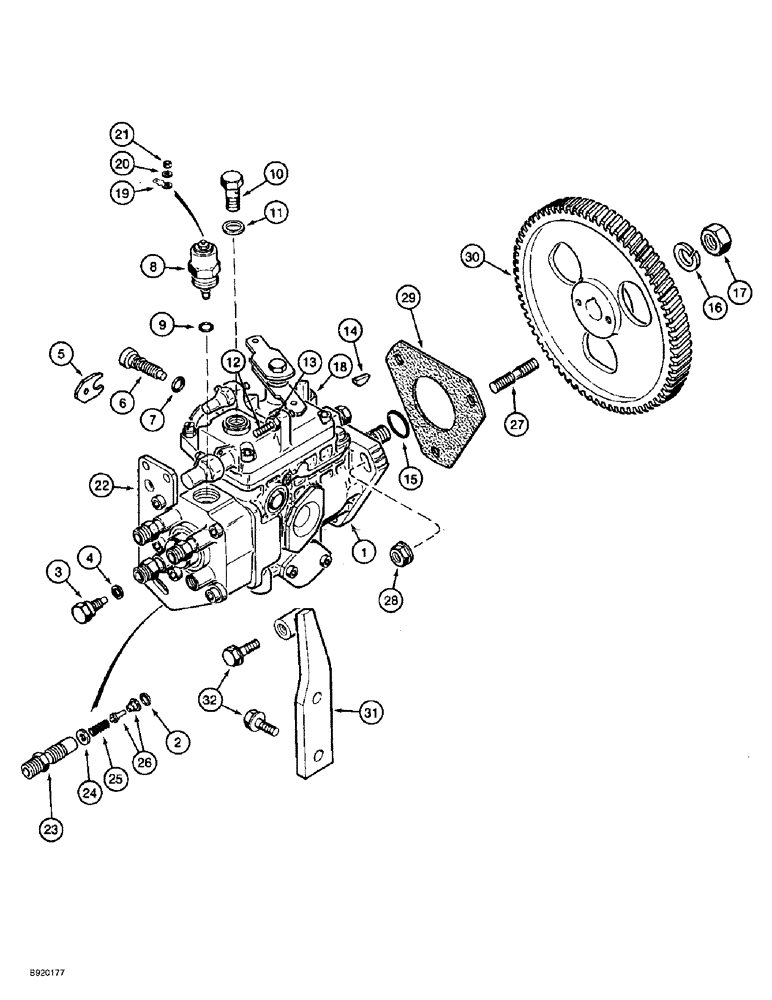

Запчасти Case 860 (3-10) - FUEL INJECTION PUMP AND DRIVE - 4T-390 ENGINE (03) - FUEL SYSTEM

JR917528

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC917500

PUMP, FUEL INJECTION

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J917528

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 1 - 26

1шт.

2

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

- delivery valve

4шт.

3

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

4

3053133R1

SEALING RING,M8 x 11.5 x 1

RING - gasket, vent screw

1шт.

5

J904786

PLATE

- timing lock

1шт.

6

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

- timing lock

1шт.

7

J904785

O-RING,8 mm ID x 2.5 mm

- timing lock screw

1шт.

8

A77753

SOLENOID

SOLENOID ASSEMBLY - shut down, component parts not serviced separately

1шт.

9

J903577

SEAL

- solenoid

1шт.

10

J905465

BANJO BOLT

BOLT - banjo, overflow

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - overflow screw

1шт.

12

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idle stop

1шт.

13

J904783

NUT

- low idle screw

1шт.

14

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

15

J920393

SEAL

- shaft

1шт.

16

92-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

17

J903738

NUT

- hex, special, 14 mm - 2.0

1шт.

18

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

ADAPTER - tube

1шт.

19

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL - , D+ adapter Male

1шт.

20

J907481

WASHER

- lock, special

1шт.

21

J907480

NUT

- special

1шт.

22

J905696

SUPPORT

BRACKET - pump support

1шт.

23

J910794

FITTING

- bypass delivery valve

4шт.

24

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

- special, used as shim

4шт.

25

J910796

SPRING

- delivery valve

4шт.

26

J910795

BY-PASS VALVE

VALVE - bypass delivery

4шт.

27

J902501

STUD

- pump mounting, 8 - 1.25 x 48 mm

3шт.

28

J900589

NUT

- hex flange, special, 8 mm

3шт.

29

J914389

GASKET

- pump mounting

1шт.

30

J920594

PINION

GEAR - pump drive

1шт.

31

J905313

LEVER

BRACE - fuel pump

1шт.

32

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

3шт.
