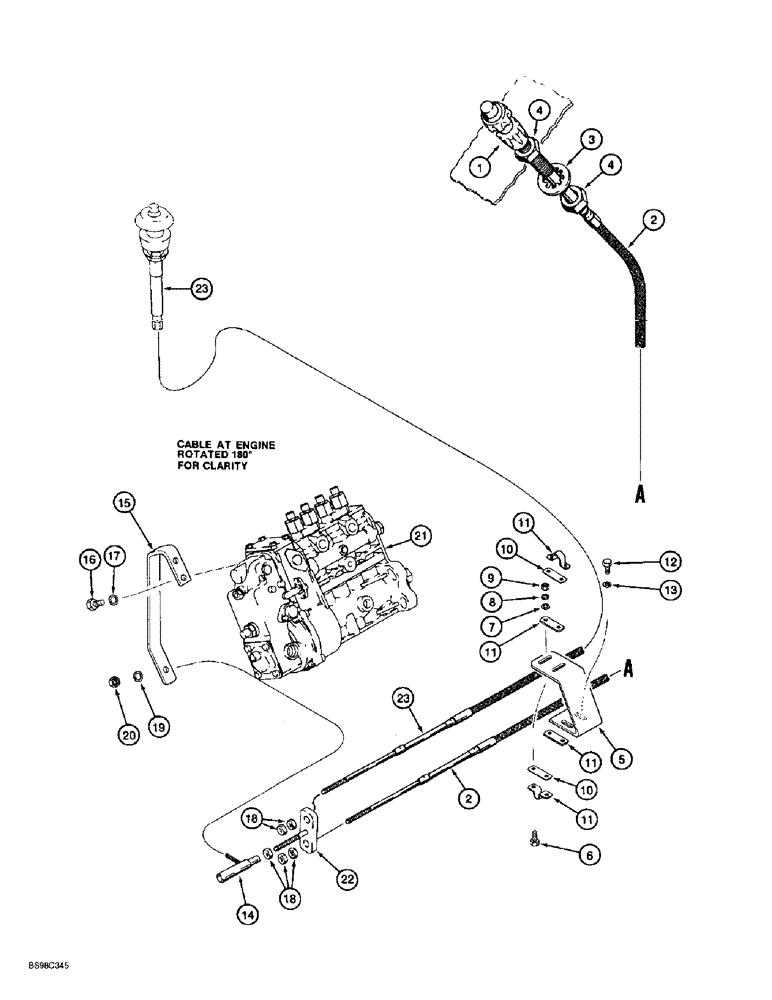

Запчасти Case 860 (3-05C) - THROTTLE AND LINKAGE USED ON MODELS WITH 4T-390 EMISSION CERTIFIED ENGINE AND BACKHOE (03) - FUEL SYSTEM

H433128

CABLE

ASSEMBLY - throttle, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

LOCK - friction, throttle cable

1шт.

2

NSS

NOT SOLD SEPARAT

CABLE - throttle

1шт.

3

493-21078

LOCK WASHER,Int Tooth, 3/4"

WASHER - internal tooth lock, 3/4 inch

1шт.

4

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.

5

291361A1

SUPPORT

BRACKET - mounting, throttle cable

1шт.

6

363-11020

SCREW,Hex Hd, #10-24 x 1 1/4"

- machine, hex head, No. 10 NC x 1-1/4 inch

2шт.

7

495-31020

WASHER,#10

flat (13/64" x 15/32" x 3/64") #10

2шт.

8

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

225-14110

NUT,#10-24

2шт.

10

257267A1

PLATE

- shim

1шт.

11

L12441

CLAMP

- two-piece

2шт.

12

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

14

278183A1

BALL JOINT

JOINT - ball

1шт.

15

292000A1

LEVER

- accelerator

1шт.

16

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

17

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

18

225-14210

NUT,#10-32

5шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

425-114

NUT,1/4"-28, G5

1шт.

21

J930154

PUMP

ASSEMBLY - fuel injection, without aneroid, see figure 3-11A

1шт.

22

257177A1

STEM

ROD - throttle

1шт.

23

282115A1

CABLE

- throttle

1шт.

24

321-5288

DECAL

- throttle, installed on hood, not shown

1шт.
