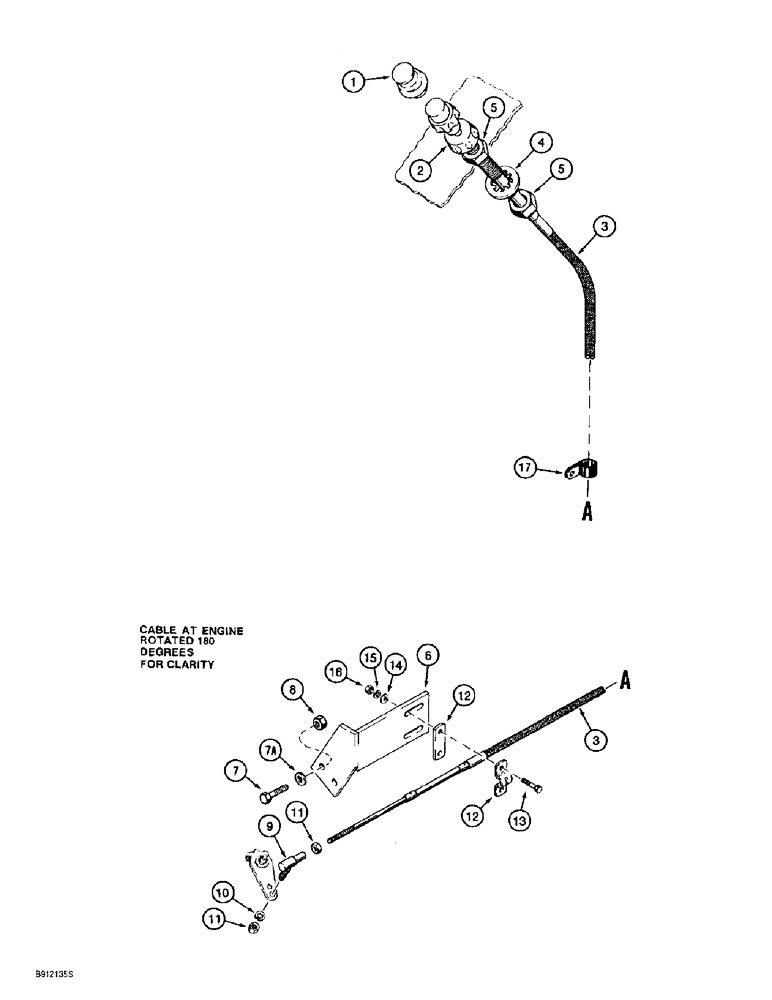

Запчасти Case 860 (3-04) - THROTTLE AND LINKAGE USED ON MODELS WITH 4T-390 ENGINE (03) - FUEL SYSTEM

H433128

CABLE

ASSEMBLY - throttle, Includes: Ref. 1 - 5

1шт.

1

H358994

COVER

- dust, throttle cable

1шт.

2

NSS

NOT SOLD SEPARAT

LOCK - friction, throttle cable

1шт.

3

NSS

NOT SOLD SEPARAT

CABLE - throttle

1шт.

4

493-21078

LOCK WASHER,Int Tooth, 3/4"

WASHER - internal tooth lock, 3/4 inch

1шт.

5

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.

6

H675024

BRACKET

- mounting, throttle cable

1шт.

7

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

7a

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

8

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

9

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, Serial Range: throttle-engine

1шт.

10

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

11

225-14210

NUT,#10-32

2шт.

12

L12441

CLAMP

- two-piece

1шт.

13

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch

2шт.

14

495-31022

WASHER,#10

2шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

225-14110

NUT,#10-24

2шт.

17

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-type, 1 inch ID, use existing hardware

1шт.
